Product Details:
|
| Features: | Durable Quality And Long Service Life Guaranteed | Application: | Single Rail PCB Buffer Conveyor For SMT Production Line Use. |
|---|---|---|---|
| Description: | Lift Buffer (500mm) | Applicable PCB Size: | 50*50-530*460 Mm |
| Model: | RC-050XL-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | For Industrial Use |
| Packaging: | Wooden Box | ||
| Highlight: | 500mm PCB Buffer Conveyor,PCB Buffer Conveyor 50*50,Buffer Conveyor 530*460mm |
||

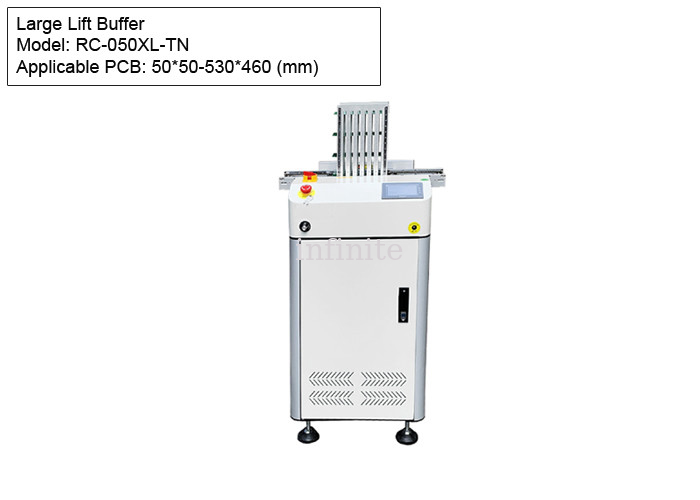

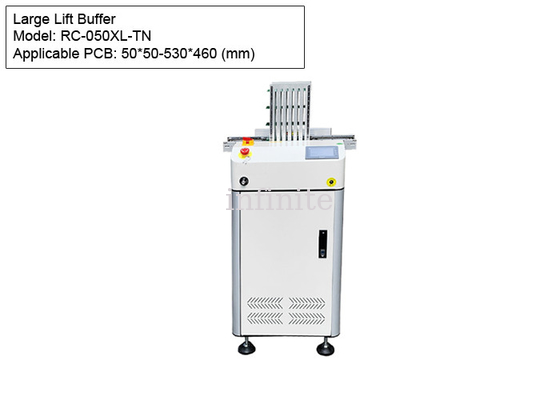

500mm Lift Buffer - Single Rail PCB Buffer Conveyor for XL size PCBs 50*50-530*460mm | INFITEK Board Handling Equipment
The INFITEK Lift Buffer is a PCB Buffer Conveyor designed to temporarily collect NG PCBs after the SPI or AOI process. This SMT Board Handling Equipment has the ability to receive commands from SPI and AOI and will automatically separate the NG boards while the good PCB is directed to its next process. INFITEK RC-050XL-TN is designed for 50mm length and is available for PCBs with sizes from 50*50-530*460mm.
Machine Name: Lift Buffer
Model: RC-050XL-TN
PCB Size: 50*50-530*460 (mm)
Machine Dimensions: 500*793*900 (mm)
Est. Machine Weight: 70 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit allows good and bad board separation in AOI, during testing, the good board can continue to run without interrupting |
| Belt type | Antistatic oblate belt |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Storage plate number | 8pcs (or specify) |
| Storage plate distance | 20mm (or specify) |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
