Product Details:
|
| Application: | Dual Lane NG Buffer Conveyor For SMT Production Line | Description: | Dual Lane NG Buffer Conveyor (without Extension Conveyor) L Size PCB |
|---|---|---|---|
| Model: | BN-L-DSN | Brand: | INFITEK |
| Warranty: | 1 Year Warranty | Reliability: | Durable / For Industrial Use |
| Packaging: | Wooden Box / Crate | ||
| High Light: | PLC Control Buffer Conveyor Systems,Buffer Conveyor Systems SMEMA |
||

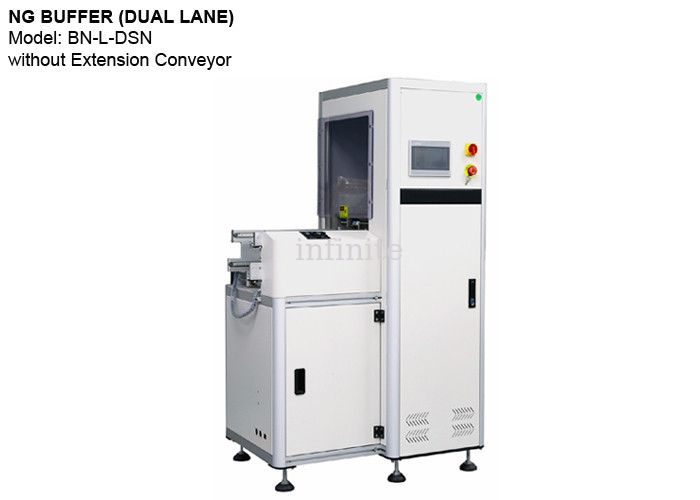

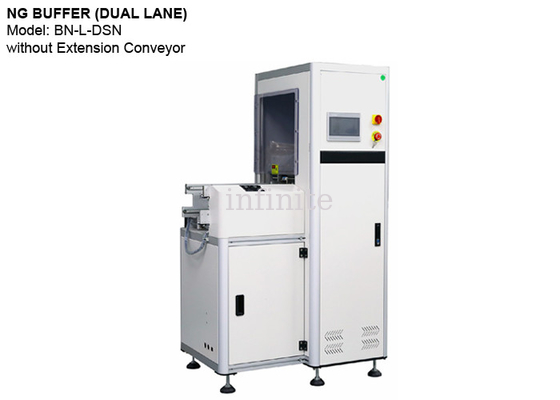

Dual Lane NG Buffer without extension conveyor for L-size PCB | INFITEK Board Handling Equipment
The INFITEK BN-L-DSN NG Buffer is a Buffer Conveyor System designed to be the temporary storage of PCBs that have not passed SPI or AOI inspection. It automatically receives a command from the Automatic Inspection Machine and holds the NG PCBs in the buffer elevator while the good PCBs go directly to the next process. BN-L-DSN is a dual lane NG Buffer Machine designed for L-size PCB.
Machine Name: NG Buffer Conveyor (Dual Lane)
Model: BN-L-DSN
For L-size PCB
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
