600mm SMT PCB Buffer Conveyor Single Rail For XL Size PCBs 50*50 - 530*460mm

600mm Lift Buffer - PCB Buffer Conveyor, Single Rail for XL size PCBs 50*50-530*460mm | INFITEK Board Handling Equipment

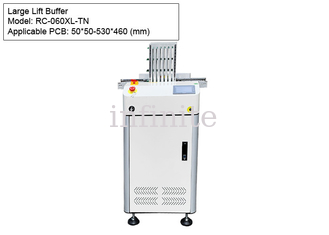

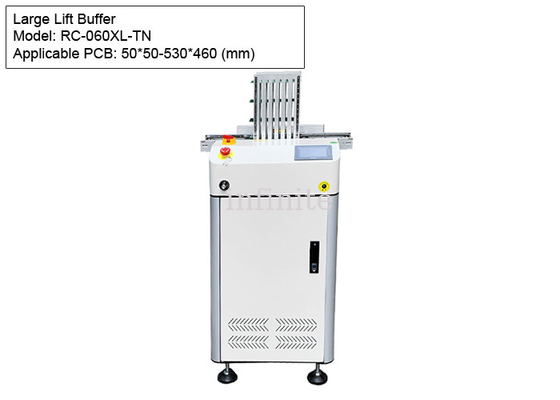

The INFITEK RC-060XL-TN Lift Buffer is an SMT Board Handling Equipment used to temporarily isolate NG PCBs that have been rejected during SPI or AOI inspection. This PCB Buffer Conveyor can receive commands from SPI and AOI machines. While the good PCBs will go straight to their following process, the NG PCBs will go up to the lifter and be manually picked up by the operator for a more thorough visual inspection or any process it needs to go back to. The INFITEK RC-060XL-TN Lift Buffer Machine is a model designed with a length of 600mm single rail and has the capacity to load XL size PCBs with dimensions ranging from 50*50-530*460. This PCB Buffer Conveyor can also be used in 3 operation modes - Reject, inspect, and pass -through modes.

Machine Name: Lift Buffer

Model: RC-060XL-TN

PCB Size: 50*50-530*460 (mm)

Machine Dimensions: 600*793*900 (mm)

Est. Machine Weight: 105 kg.

Features:

• Reject, inspect, and pass-through modes provided
• Modular design
• Stability enhanced by “robust design”
• Inducing multi-zone position accuracy
• Ergonomic design, makes arms rest
• Different lengths available upon request
• Multi-zone concept available upon request
• variable speed control
• SMEMA compatible
