Product Details:
|
| Features: | Multi Function Vertical Buffer Unit Is Used As A Buffer Between SMT Machines | Application: | Multi-function PCB Buffer Machine |
|---|---|---|---|
| Description: | Multifunctional Vertical Type Buffer | Brand: | INFITEK |
| Model: | BD-L-TN, BD-XL-TN | Warranty: | 1 Year Warranty |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box Package |
| Highlight: | Multifunctional PCB Edge Belt Conveyor,PCB Edge Belt Conveyor,FIFO SMT Manufacturing Line |
||
Multifunctional Vertical Type Buffer SMT Assembly Line PCB Conveyor
Multifunctional Vertical Type Buffer, Modular Design SMT Link Conveyor

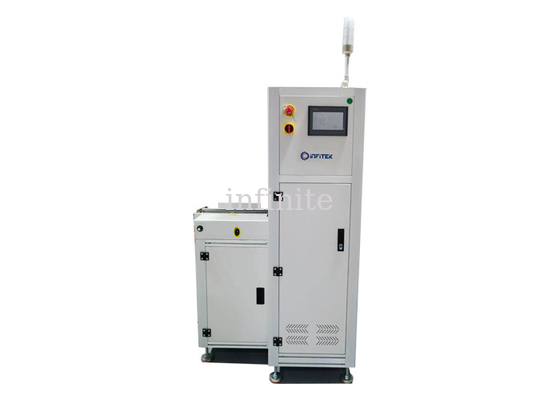

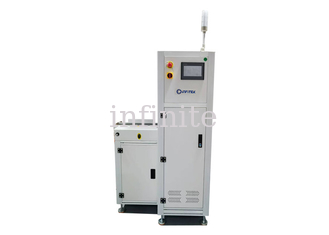

INFITEK Multifunctional Vertical Type Buffer is used as a buffer between SMT machines. This multi-function buffer conveyor has a maximum capacity to buffer up to 25 pcs. PCBs and also can be specified according to customers' requirements. INFITEK Multifunctional Vertical Type Buffer Conveyor has an easy-to-use membrane control panel. INFITEK Multifunctional Vertical Type Buffer can be set in three (3) operation modes; FIFO, LIFO, and Pass-through. INFITEK Vertical Type Buffer is made from high-quality materials and with an enclosed design to ensure the highest level of safety. Equipped with a lead screw for smooth and easy rail width adjustments. INFITEK Multifunctional Vertical Type Buffer uses a wear-resistant anti-static belt for transmission.
Features:
User-friendly membrane control panel
Use wear-resistant anti-static belts for transmission (convenient belt replacement)
Three operation modes: FIFO, LIFO, Pass-through

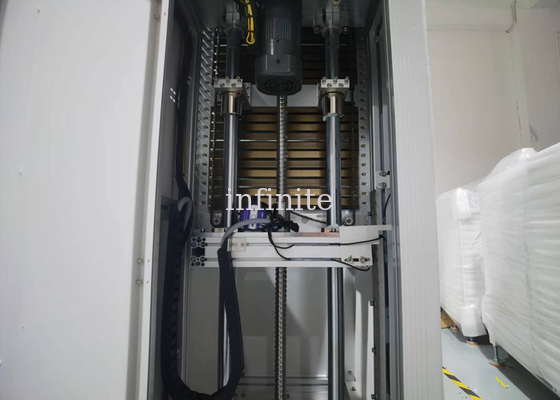

Parallel and smooth width adjustment (lead screw)
Fast, smooth, and accurate retrieval positions
The enclosed design ensures the highest level of safety
Small machine footprint
SMEMA compatible
| TECHNICAL PARAMETERS | |
| Description | This unit is used as a buffer between the SMT machine |
| Cycle time | Approx.10 seconds |
| Maximum PCBs magazine | 25pcs or specify |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| BD-L-TN | 1000*790*1640 | 50*50-445*350 | 190 |
| BD-XL-TN | 1200*900*1640 | 50*50-530*460 | 240 |
