Product Details:
|
| Features: | Minimize Clearance Between Conveyor | Application: | PCB Vacuum Loading In SMT Production Line |
|---|---|---|---|
| Description: | SMT Vacuum Loader | Model: | LV-330W-TN, LV-460W-TN |
| Brand: | INFITEK | Reliability: | Design For Industrial Use |
| Packaging: | Wooden Box Package | Warranty: | 1 Year |
| High Light: | 6bar SMT Magazine Loader,SMT Magazine Loader 12 Seconds |
||
Vacuum Loader SMT Assembly Line Translation Type Suction Machine
SMT Vacuum Loader, Translation type suction machine, High-quality, and Durable SMT Link Conveyors

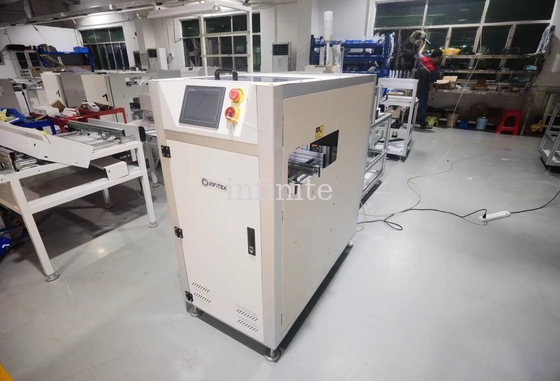

SMT Vacuum Loader is used for automatic loading operation of PCB in SMT Production Line. INFITEK Series Translation type suction machine has a touch screen control panel making this machine convenient and easy to operate. Equipped with a stepper motor, this SMT vacuum loader equipment provides smooth and precise translation. Infinite Vacuum Loading Machine is designed with a fully enclosed structure to ensure safe operations. Infinite SMT Vacuum Loader is available for different PCB sizes and we also customized machine size depending on customer's requirements.
Features:

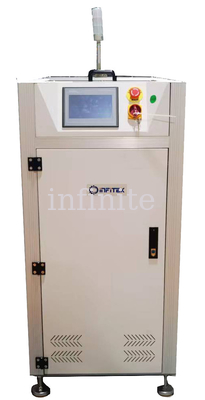

Convenient operation of touch screen control panel
The vacuum loader structure is fully enclosed to ensure a safe level of operation

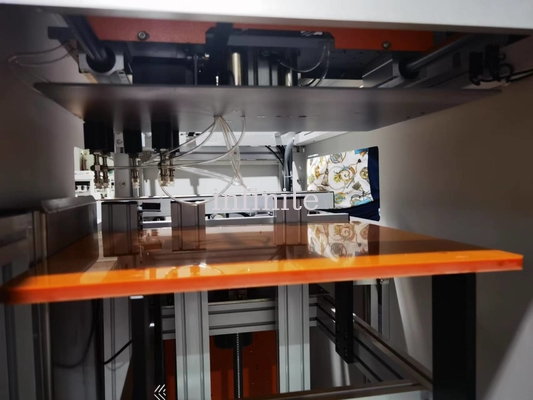

Adjust the position of the suction nozzle to ensure the circuit boards are clamped

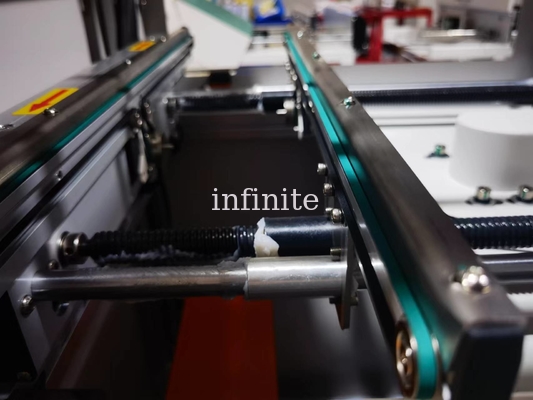

Parallel and smooth width adjustment (lead screw)
Smooth and precise translation (stepper motor)

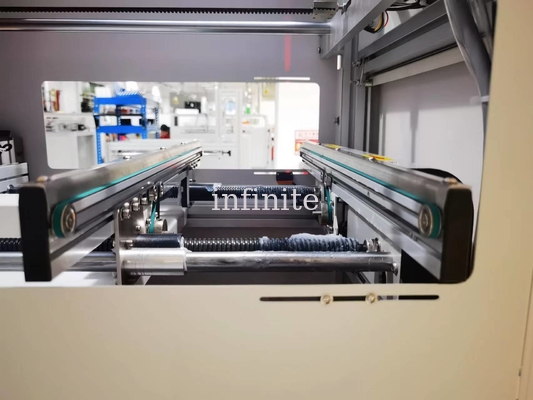

Minimize clearance between conveyor
The machine size can be specified
SMEMA compatible
| TECHNICAL PARAMETERS | |
| Description | This unit is used for automatic loading operation into the transceiver board |
| Cycle time | Approx. 12seconds or specify |
| Power supply | AC1P110V/220V |
| Power | 150V max |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| LV-330W-TN | 600*1002*1300 | 50*50-450*330 | 130 |
| LV-460W-TN | 800*1270*1300 | 50*50-530*460 | 150 |
Infinite Automation is focusing on providing alternative SMT Factory Automation and Production Solutions. We have a factory warehouse in China and offer sales of new and used SMT machines. Infinite Automation provides full SMT assembly line solutions, we offer brand new and best conditions second-hand/pre-owned SMT machines and equipment-Solder Paste Printer, SMT Mounter, AOI, SPI, Link Conveyors, Industrial Cleaners, and all factory automation products.
