L Type Loader designed for M Size PCB, 50mm x 80mm up to 330mm x 250mm PCBs | INFITEK Board Handling Equipment

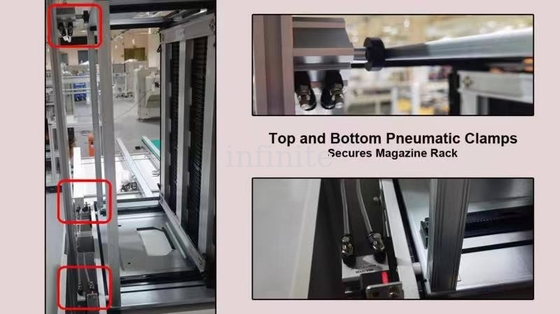

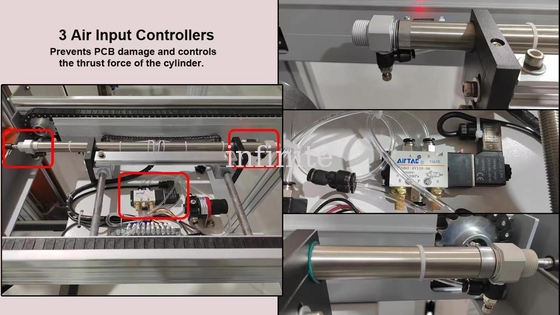

L Type Loader/Unloader is the equipment used to operate the upper board or lower board of the circuit board in the SMT production line. PCB loader and unloader are usually used for loading and unloading PCB board during the SMT process. Infinite L Type Loader and unloader have a stable and firm design, making this equipment durable and strong. Our L-type loader/unloader machine is equipped with a soft touch screen panel and with a user-friendly control interface. INFITEK L Type Loader/Unloader is designed with good safety features and a special gas circuit design that prevents PCB breakage.

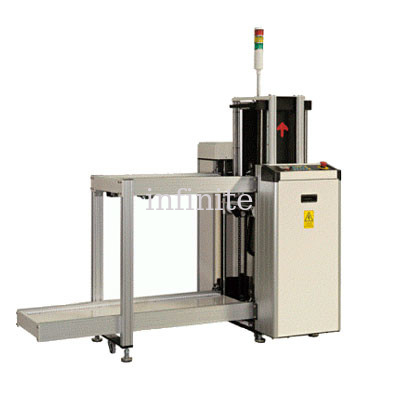

L TYPE LOADER
Model: LF-M-BN
Applicable PCB Size: 50*80-330*250 (mm)
PCB Magazine Size: 355*320*563 (mm)
Machine Dimensions: 1150*1150*1205 (mm)
Machine Weight: 160 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper board or lower board of the circuit board on the SMT production line |
| No. of magazine | Upper Conveyor:1 magazine, lower conveyor:1 magazine |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | ||||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Rack size (L*W*H MM) | Weight (KG) |
| ULF-M-TN | 1150*1150*1205 | 50*80-330*250 | 355*320*563 | 160 |
| ULF-L-TN | 1350*1350*1205 | 50*80-445*330 | 460*400*563 | 220 |
| ULF-LL-TN | 1550*1550*1205 | 50*80-530*390 | 535*460*563 | 280 |
| ULF-XL-TN | 1550*1780*1205 | 50*80-530*460 | 535*530*563 | 320 |
