Product Details:
|
| Features: | Durable Ang Guaranteed Long Service Life | Application: | Compact Size PCB Loading Machine Used In SMT Production Line |
|---|---|---|---|
| Description: | Compact PCB Loader Machine For XL Size PCBs | Model: | U-XL-TN |
| Brand: | INFITEK | Warranty: | 1 Year Warranty |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box/Crate |
| High Light: | 300VA PCB Loader,PCB Loader 50*80mm |
||

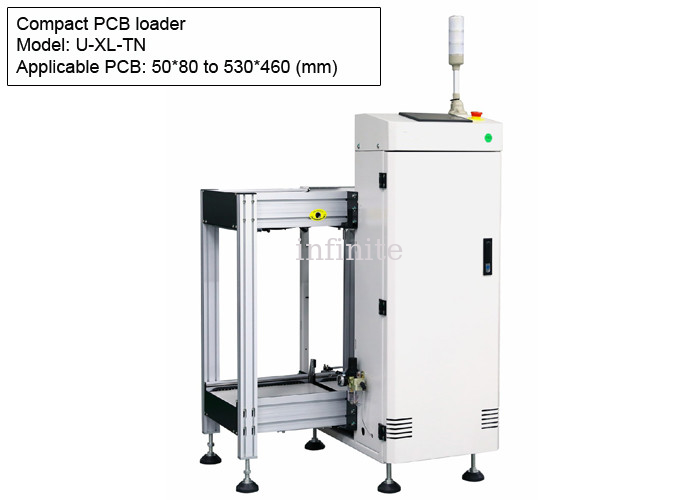

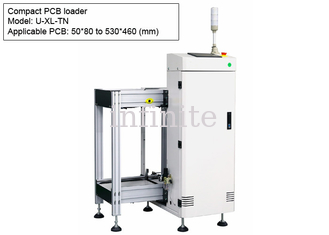

Compact PCB Loader applicable to XL Size PCB's - 50mm x 80mm up to 530mm x 460mm XL size PCBs
The INFITEK U-XL-TN Compact Size SMT Loader is a PCB Magazine Loader designed to take up a smaller space compared to the Regular Type PCB Magazine Loader. This PCB Loading Machine is suitable for use in SMT Production Lines with limited space. The INFITEK Compact PCB Loader has different models designed for different PCB sizes. The U-XL-TN PCB Loading Machine is the model for XL size PCBs. It can be used on PCBs with sizes from 50mm x 80mm up to 530mm x 460mm XL size PCBs. INFITEK is a reliable China Manufacturer that produces SMT Board Handling Equipment and machines for use in Electronic Products Manufacturing.
Equipment Name: Compact PCB Loader
Brand: INFITEK
Model: U-XL-TN
Applicable PCB Sizes: 50*80mm up to 530*460mm - XL Size PCB
PCB Magazine Size: 535*530*563 (mm)
Machine Size: 1300*980*1250 (mm)
Machine Weight: 280 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for loading PCBs to the next process |
| No. of magazine | 1 Upper conveyor: 1 magazine Lower conveyor: 2 magazine |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
