Product Details:
|
| Features: | Durability And Guaranteed To Have Long Service Life | Application: | L Type PCB Loader For L Size PCB In SMT Production Line |
|---|---|---|---|
| Description: | L Type PCB Loader | Applicable PCB Size: | 50*80 Up To 445*330 Mm |
| Model: | LF-L-BN | Brand: | INFITEK By Infinite Automation |
| Warranty: | 1 Year Warranty Period | Reliability: | Industrial Grade |
| Packaging: | Wooden Crate Or Wooden Box | ||
| High Light: | Touch Screen SMT Magazine Loader,LED SMT Magazine Loader,Bare Board Loader |
||

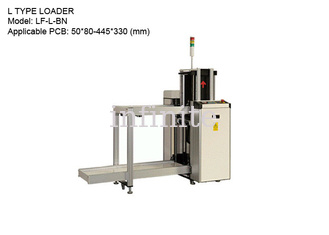

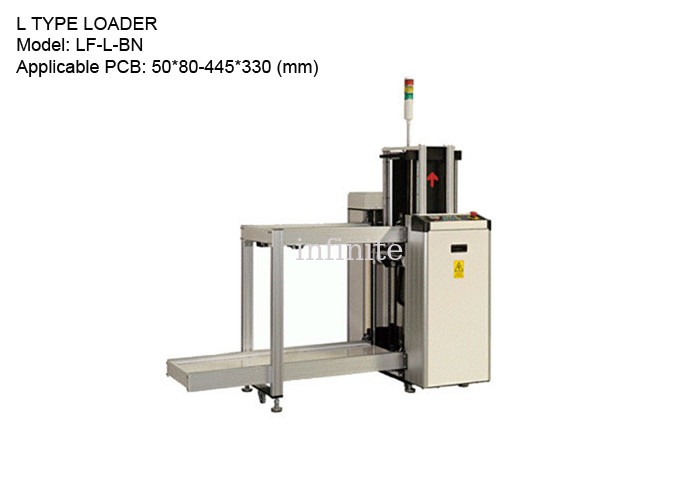

L Type Loader designed for L Size PCB, 50mm x 80mm up to 445mm x 330mm PCBs | INFITEK Board Handling Equipment
INFITEK LF-L-BN L Type PCB Loader is a PCB board handling equipment used for transferring PCB to the next process in SMT Production Line. INFITEK LF-L-BN is designed to be used up to L size PCBs and can be used on PCBs with sizes from 50*80mm to 445*330mm and uses a PCB magazine of 460*400*563. This Magazine Type PCB Loader can also be customized according to your SMT Production Line requirements.
Equipment Name: L Type Loader for L Size PCB
Model: LF-L-BN
Usable PCB Sizes: 50*80-445*330 (mm)
Applicable PCB Magazine Size: 460*400*563 (mm)
Equipment Size: 1350*1350*1205 (mm)
Equipment Weight: Approx. 220 kg
INFITEK L TYPE LOADER - Model LF-L-BN Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper board or lower board of the circuit board in the SMT production line |
| No. of magazine | Upper Conveyor:1 magazine |
| Lower conveyor:1 magazine | |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
