Product Details:
|
| Features: | Durability Tested And Long Service Life Guaranteed | Application: | L Type PCB Loader For LL Size PCB In SMT Production Line |
|---|---|---|---|
| Description: | L Type PCB Loader (LL Type) | Applicable PCB Size: | 50*80 Up To 530*390 Mm |
| Model: | LF-LL-BN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box | ||
| High Light: | 6s SMT Magazine Loader,SMT Magazine Loader 30s,SMT PCB Loader |
||

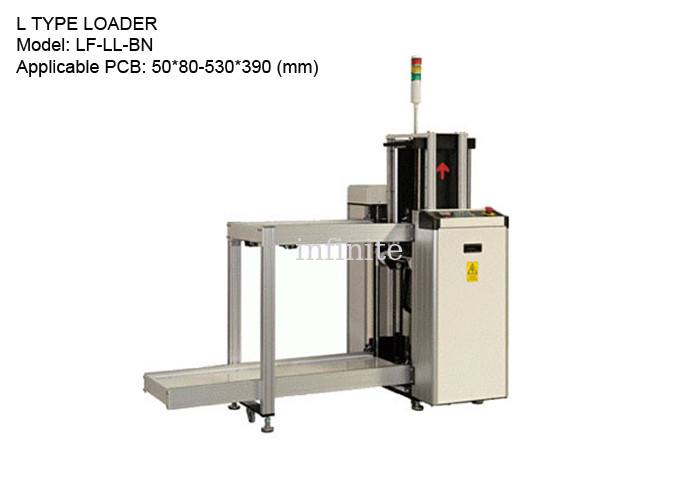

L Type Loader designed for LL Size PCB, 50mm x 80mm up to 530mm x 390mm PCBs | INFITEK Board Handling Equipment
INFITEK LF-LL-BN L Type Loader is PCB Board Handling Equipment used in SMT Production Line. Its main use is to transfer the PCB using the PCB magazine to the next process. The INFITEK LF-LL-BN L Type PCB Loading Machine is the model designed for LL Type PCB size. This model has the capacity to transfer PCBs with sizes ranging from 50*80mm to 530*390mm maximum PCB size. INFITEK Board Handling Equipment is manufactured by Infinite Automation (China), a reliable China Manufacturing Company whose aim is to develop and manufacture quality and reliable equipment and machines that help Electronic Products Manufacturing.
Equipment Name: L Type Loader for LL Size PCB
Model: LF-LL-BN
Applicable PCB: 50*80-530*390
PCB Magazine: 535*460*563 (mm)
Machine Dimensions: 1550*1550*1205 (mm)
Machine Weight: Approx. 280 kg
INFITEK L TYPE LOADER - Model LF-LL-BN Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper board or lower board of the circuit board in the SMT production line |
| No. of magazine | Upper Conveyor:1 magazine |
| Lower conveyor:1 magazine | |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
