Product Details:
|
| Features: | Durability And Long Service Life Guaranteed | Application: | L Type PCB Loader For XL Size PCB In SMT Production Line |
|---|---|---|---|
| Description: | L Type PCB Loader (XL Type) | Applicable PCB Size: | 50*80 Up To 530*460 Mm |
| Model: | LF-XL-BN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box | ||
| High Light: | L Type SMT Magazine Loader,SMT Magazine Loader 900mm,SMT Loader XL |
||

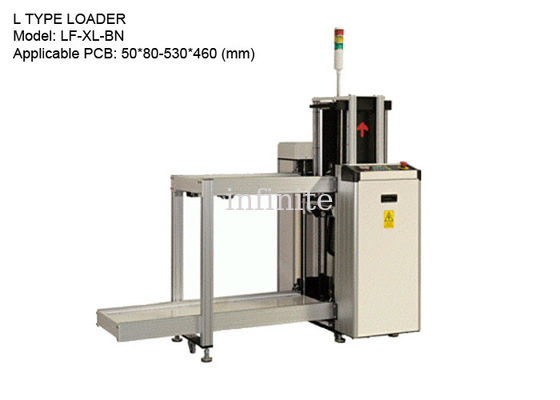

L Type Loader designed for XL Size PCB, 50mm x 80mm up to 530mm x 460mm PCBs | INFITEK Board Handling Equipment
INFITEK LF-XL-BN is the L Type PCB Loader designed for XL-size PCBs. This equipment is used for transferring the PCB to the next process and is used by the PCB Magazine as a PCB holder and is suitable for use on bare boards and component-mounted PCBs. INFITEK has various models of PCB board handling equipment for the entire SMT Production Line process.
Equipment Name: L Type Loader for XL Size PCB
Model: LF-XL-BN
Applicable PCB: 50*80-530*460 (mm)
PCB Magazine: 535*530*563 (mm)
Machine Dimensions: 1550*1780*1205 (mm)
Machine Weight: Approx. 320 kg
INFITEK L TYPE LOADER - Model LF-LL-BN Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper board or lower board of the circuit board in the SMT production line |
| No. of magazine | Upper Conveyor: 1 magazine |
| Lower conveyor:1 magazine | |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
