Product Details:
|
| Features: | Durability And Long Service Life Guaranteed | Application: | Dual Purpose PCB Loader For Bare Board And Mounted PCBs |
|---|---|---|---|
| Description: | PCB DESTACKER + MAGAZINE LOADER (M Type PCB) | Applicable PCB Size: | 50*80-330*250 Mm |
| Model: | LC-M-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box | ||
| High Light: | AC 220V SMT PCB Loader,SMT PCB Loader M Size |
||
PCB Destacker + Magazine Loader - Dual Purpose SMT PCB Loader for M Size PCB | INFITEK Board Handling Equipment

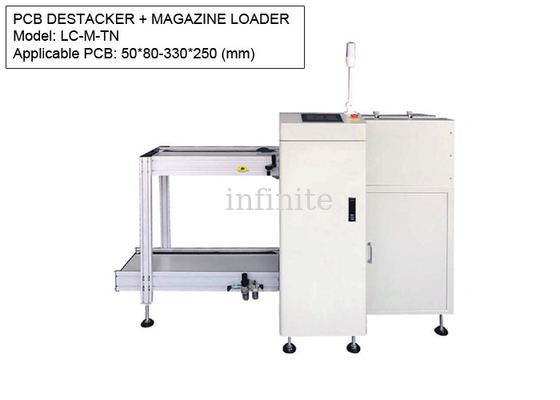

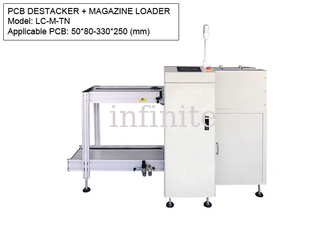

INFITEK LC-M-TN PCB Destacker + Magazine Loader is a dual-purpose PCB loader used in SMT Production Line. This board handling equipment can be used as PCB Destacker and Magazine Loader. LC-M-TN Destacker + Magazine Loader is designed for M-size PCBs with sizes from 50*80mm to 330*250mm.
As PCB Stacker - this function is used for loading the bare board PCB in the next process.
As a Magazine Loader - this function is used for loading a PCB that already has SMD components mounted on one side and it is necessary to return to the SMT printing and mounting process on the other side (2 side mounting PCB).
Machine Name: PCB DESTACKER + MAGAZINE LOADER (DUAL PURPOSE PCB LOADER)
Model: LC-M-TN
PCB Size: M Type - 50*80-330*250 (mm)
PCB Magazine Size: 355*320*563
Machine Dimensions: 1850*855*1250
Est. Machine Weight: Approx. 190 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for automatic loading operation of double-sided boards and transceiver board (Dual-purpose PCB loader - can function as Bareboard PCB loader or as Magazine Loader. |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 2 magazine |
| Indexing pitch | 10.20.30.40mm or specify |
| Maximum PCBs capacity | 400pcs (0.6mm thick PCB) |
| Cycle time | Approx. 12 seconds or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
