Product Details:
|
| Features: | Durability And Long Service Life Guaranteed | Application: | Dual Purpose PCB Loader For Bare Board PCB And Mounted PCB |
|---|---|---|---|
| Description: | PCB DESTACKER + MAGAZINE LOADER (L Size PCB) | Applicable PCB Size: | 50*80-445*330 Mm |
| Model: | LC-L-T | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box | ||
| High Light: | 12 Seconds Bare Board Loader,Bare Board Loader 900mm |
||

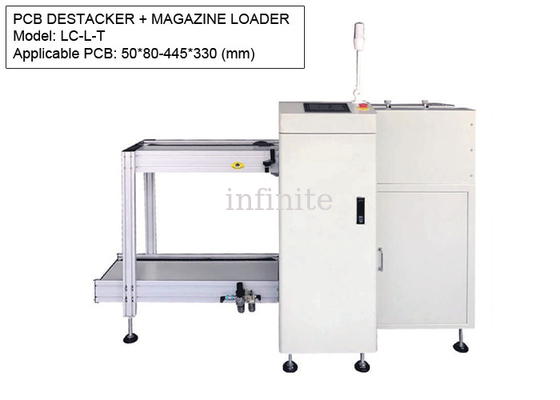

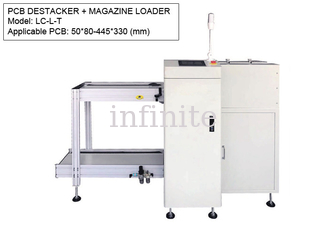

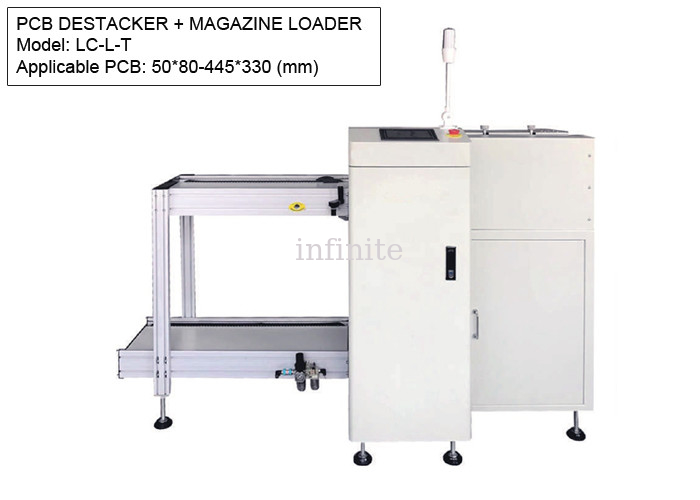

PCB Destacker + Magazine Loader - Dual Purpose SMT PCB Loader for L Size PCB | INFITEK Board Handling Equipment
INFITEK introduces our dual-purpose PCB loading equipment with a double benefit offering in the transfer process of PCBs in the SMT Production Line, the INFITEK LC-L-T PCB Destacker + Magazine Loader. This board handling equipment can be used to transfer bare board PCBs and can also be used as a magazine-type PCB loader suitable for the two-sided PCB mounting process. You can use this machine as a bare board PCB Stacker and bypass the Magazine Transfer Mode. If you need to transfer a mounted PCB, you just need to switch functions and use Magazine Loader.
INFITEK manufactures a variety of Board Handling Equipment and Conveyor Systems that can be used in SMT Production Line, DIP, and PCBA.
Machine Name: PCB DESTACKER + MAGAZINE LOADER (DUAL PURPOSE PCB LOADER)
Model: LC-L-T
PCB Size: L Size - 50*80-445*330 (mm)
PCB Magazine Size: 460*400*563 (mm)
Machine Dimensions: 2185*935*1250 (mm)
Est. Machine Weight: Approx. 220 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for automatic loading operation of double-sided boards and transceiver board (Dual-purpose PCB loader - can function as Bareboard PCB loader or as Magazine Loader. |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 2 magazine |
| Indexing pitch | 10.20.30.40mm or specify |
| Maximum PCBs capacity | 400pcs (0.6mm thick PCB) |
| Cycle time | Approx. 12 seconds or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
