Product Details:
|
| Features: | Durability And Long Service Life | Application: | Dual Purpose PCB Loader For LL Size Bare Board PCB And Mounted PCB |
|---|---|---|---|
| Description: | PCB DESTACKER + MAGAZINE LOADER (LL Size PCB) | Applicable PCB Size: | 50*80-460*390 Mm |
| Model: | LC-LL-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade Design |
| Packaging: | Wooden Crate | ||
| High Light: | PCB Destacker,LL Size PCB Destacker,Dual SMT PCB Loader |
||

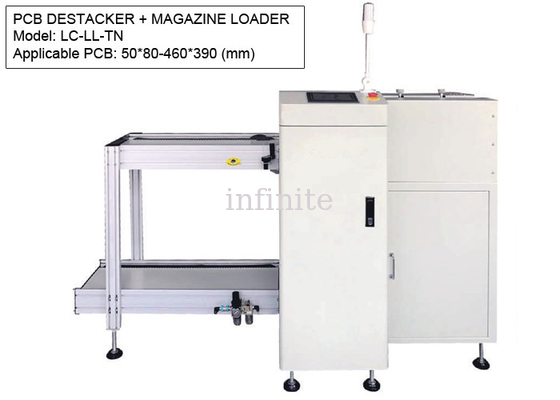

PCB Destacker + Magazine Loader - Dual Purpose SMT PCB Loader for LL Size PCB | INFITEK Board Handling Equipment
INFITEK LC-LL-TN is a dual-purpose PCB loader. It can be used as a bare board PCB loader. And can also be used as a Magazine loader. INFITEK LC-LL-TN PCB DESTACKER + MAGAZINE LOADER is adapted to SMT production lines that produce double-sided PCBs. INFITEK manufactures a variety of board handling equipment and conveyor systems for SMT, DIP, and PCBA.
Machine Name: PCB DESTACKER + MAGAZINE LOADER (DUAL PURPOSE PCB LOADER)
Model: LC-LL-TN
PCB Size: LL Size - 50*80-460*390 (mm)
PCB Magazine Size: 535*460*563 (mm)
Machine Dimensions: 2320*994*1250 (mm)
Est. Machine Weight: Approx. 260 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for automatic loading operation of double-sided boards and transceiver board (Dual-purpose PCB loader - can function as Bareboard PCB loader or as Magazine Loader. |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 2 magazine |
| Indexing pitch | 10.20.30.40mm or specify |
| Maximum PCBs capacity | 400pcs (0.6mm thick PCB) |
| Cycle time | Approx. 12 seconds or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
