Product Details:
|
| Features: | Durable And Long Service Life | Application: | NG And OK PCB Automatic Separation After SPI/AOI |
|---|---|---|---|
| Description: | NG Buffer Conveyor (with Extension Conveyor) L Size PCB | Applicable PCB Size: | 50*50-460*350 Mm |
| Model: | BN-L-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Crate/box | ||
| High Light: | Durable SMT AOI Machine,SMT AOI Machine L Size,PCB Buffer |
||

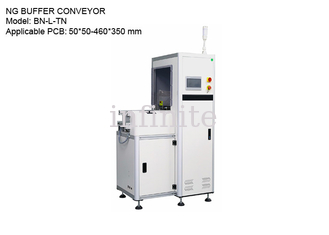

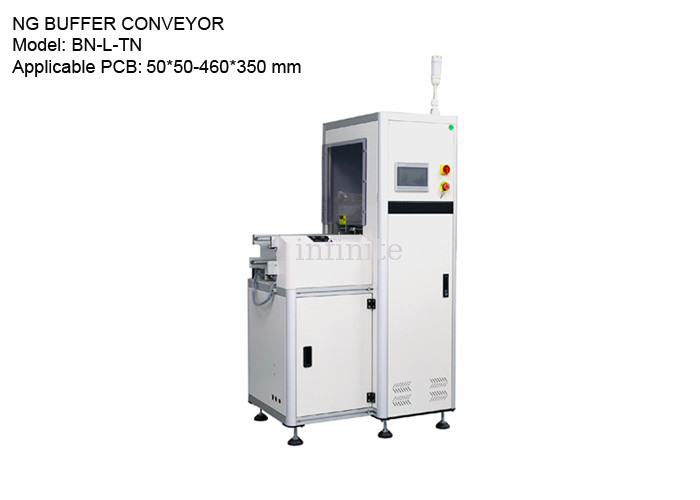

NG Buffer with Extension Conveyor for L Size PCB - NG/OK PCB Separation after AOI/SPI | INFITEK Board Handling Equipment
The INFITEK BN-L-TN NG Buffer Conveyor is an SMT board handling equipment suitable for use after the automatic inspection process. It can be attached after SPI or AOI machine. The NG Buffer Conveyor has the ability to receive signals/commands from SPI and AOI machines. Good PCBs go directly to the next process, while NG boards go to the upper conveyor. An INFITEK NG Buffer Conveyor can be with or without an extension conveyor. INFITEK BN-L-TN NG Buffer Conveyor can be used with L size PCB (50mm*50mm up 460mm*350mm).
Machine Name: NG Buffer Conveyor
Model: BN-L-TN
PCB Size: 50*50-460*350 (mm)
Machine Dimensions: 1000*790*1640 (mm)
Est. Machine Weight: Approx. 300 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
