Product Details:
|
| Features: | Durability Tested And With Long Service Life | Application: | NG And OK PCB Automatic Separation After SPI/AOI |
|---|---|---|---|
| Description: | NG Buffer Conveyor (with Extension Conveyor) XL Size PCB | Applicable PCB Size: | 50*50-530*460 Mm |
| Model: | BN-XL-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box/Crate | ||
| High Light: | NG Buffer XL Size,SPI NG Buffer |
||

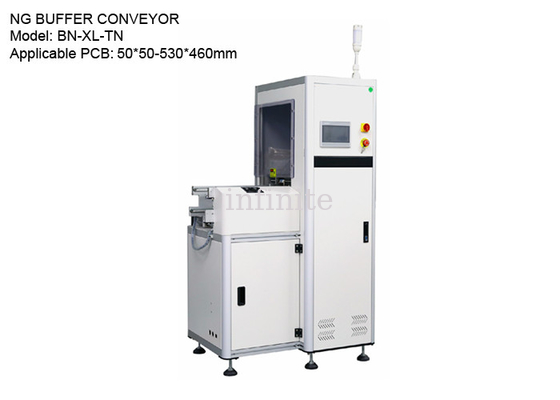

NG Buffer with Extension Conveyor for XL Size PCB - NG/OK PCB Separation after AOI/SPI | INFITEK Board Handling Equipment
The main function of an NG Buffer Conveyor is to separate PCBs after AOI or SPI and other testing machines. The OK or good PCB boards will flow straight to the next process, and the NG board will flow to the upper conveyor to temporarily accumulate and wait for manual confirmation. INFITEK BN-XL-TN NG Buffer Conveyor is an SMT board handling equipment used next to SPI, AOI, or other Testing machines. It automatically receives the signal from the said automatic inspection machines. INFITEK BN-XL-TN NG Buffer Conveyor is designed to be used with XL-size PCBs. It can be used for PCB sizes from 50*50-530*460mm.
Machine Name: NG Buffer Conveyor
Model: BN-XL-TN
PCB Size: 50*50-530*460 (mm)
Machine Dimensions: 1200*900*1640 (mm)
Est. Machine Weight: Approx. 330 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
