Product Details:
|
| Features: | Durable And Long Service Life | Application: | NG And OK PCB Automatic Separation After SPI/AOI |
|---|---|---|---|
| Description: | NG Buffer Conveyor (without Extension Conveyor) XL Size PCB | Applicable PCB Size: | 50*50-530*460 Mm |
| Model: | BN-XL-SN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box/Crate | ||
| High Light: | SPI NG Buffer,NG Buffer XL Size,AOI Buffer |
||

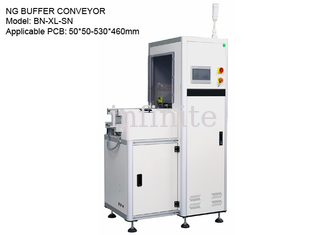

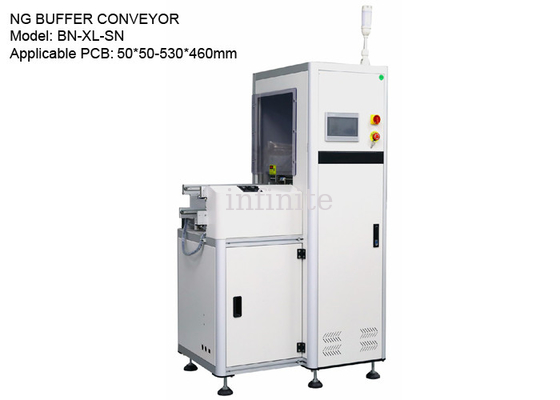

NG Buffer without Extension Conveyor for XL Size PCB - NG/OK PCB Separation after AOI/SPI | INFITEK Board Handling Equipment
INFITEK BN-XL-SN NG Buffer Conveyor is a PCB board handling used in SMT Production Line. This Buffer Conveyor has the ability to separate NG PCBs after the Automatic Inspection Machine. It can be used next to SPI, AOI, and other types of PCB inspection machines. The main feature of the INFITEK NG Buffer Conveyor separates the PCBs that will be declared NG by SPI/AOI and temporarily accumulates upwards until it is manually picked up by the operator for manual inspection or any subsequent process. The good PCB goes directly to the next process. INFITEK BN-XL-SN NG Buffer Conveyor is suitable for XL size PCBs measuring from 50*50-530*460mm.
Machine Name: NG Buffer Conveyor
Model: BN-XL-SN
PCB Size: 50*50-530*460 (mm)
Machine Dimensions: (mm)
Est. Machine Weight: Approx. kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
