Product Details:
|
| Features: | Durable And Long Service Life | Application: | Magazine Type Buffer For SMT Production Line Use. |
|---|---|---|---|
| Description: | Magazine Type Buffer For M-size PCB | Applicable PCB Size: | 50*80-330*250 Mm |
| Model: | BM-M-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box/Crate | ||
| High Light: | M Size PCB Cooling Buffer,PCB Cooling Buffer 330*250mm |
||

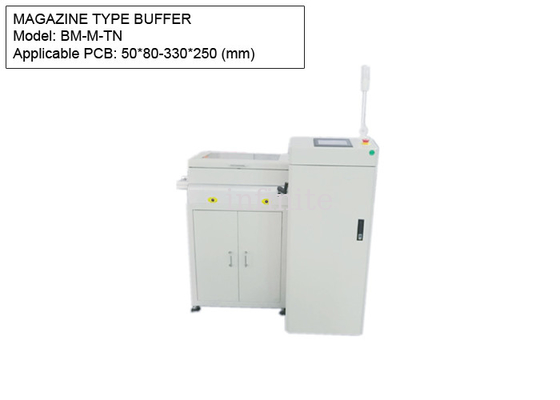

Magazine Type Buffer for M-Size PCBs - 50mm * 80mm to 330mm * 250mm PCB | INFITEK Board Handling Equipment
INFITEK Magazine Type Buffer is Board Handling Equipment used for receiving NG board or memory board. It is The Magazine Buffer is used in SMT production Line. The SMT Magazine Type Buffer can be used in 6 operation modes - FIFO, LIFO, upper board, lower board, NG board cache, and pass-through. The BM-M-TN model is designed for use with M-size PCBs ranging in size from 50*80mm to 330*250mm.
Machine Name: Magazine Type Buffer
Model: BM-M-TN
PCB Size: 50*80-330*250 (mm)
PCB Magazine Size: 355*320*563 (mm)
Machine Dimensions: 1150*1150*1250 (mm)
Est. Machine Weight: Approx. 160 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is used for receiving NG board or memory board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Air pressure | 4-6bar,15ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
