Product Details:
|
| Features: | Durability Tested And Long Service Life | Application: | Magazine Type Buffer Used In SMT Production Line Use. |
|---|---|---|---|
| Description: | Magazine Type Buffer For L-size PCB | Applicable PCB Size: | 50*80-445*330 Mm |
| Model: | BM-L-TN | Brand: | INFITEK |
| Warranty: | 1 Year Warranty | Reliability: | For Industrial Use |
| Packaging: | Wooden Crate | ||
| High Light: | NG board Magazine Buffer,Magazine Buffer 445*330mm |
||

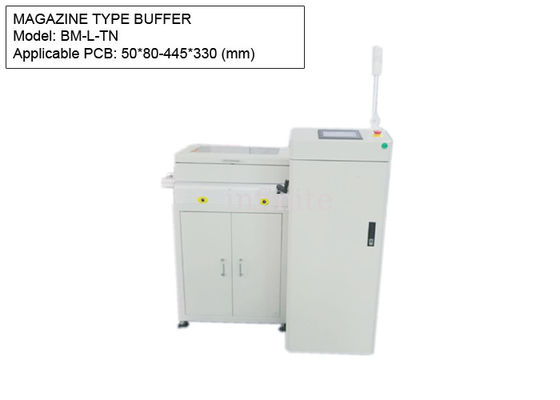

Magazine Type Buffer for L-Size PCBs - 50mm * 80mm to 445mm * 330mm PCB | INFITEK Board Handling Equipment
INFITEK BM-L-TN Magazine Type Buffer is a type of Board Handling Equipment used in SMT Production Line. This Magazine Buffer Machine is designed to collect PCBs while the subsequent process is in idle mode. This device is used for receiving NG board or memory board. This PCB Handling Equipment is easy to operate and uses a user-friendly “soft touch” LED membrane control panel or can also be used with a touch screen. INFITEK BM-L-TN is the model suitable for L-size PCBs with dimensions from 50*80-445*330mm. This Magazine Type Buffer is also capable of operating in FIFO, LIFO, upper board, lower board, NG board cache, and pass-through mode.
Machine Name: Magazine Type Buffer
Model: BM-L-TN
PCB Size: 50*80-445*330 (mm)
PCB Magazine Size: 460*400*563 (mm)
Machine Dimensions: 1350*1350*1250 (mm)
Est. Machine Weight: Approx. 220 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is used for receiving NG board or memory board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Indexing pitch | 10.20.30.40mm or can be specified |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Air pressure | 4-6bar,15ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | left to right or right to left |
