Product Details:
|
| Features: | Durable And Long Service Life Guaranteed | Application: | Magazine Type Buffer For Used In SMT Production Line Use. |
|---|---|---|---|
| Description: | Magazine Type Buffer For LL-size PCB | Applicable PCB Size: | 50*80-445*330 Mm |
| Model: | BM-L-TN | Brand: | INFITEK |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Use |
| Packaging: | Wooden Crate | ||
| High Light: | pass-through PCB Buffer Conveyor,PCB Buffer Conveyor 530*390mm |
||

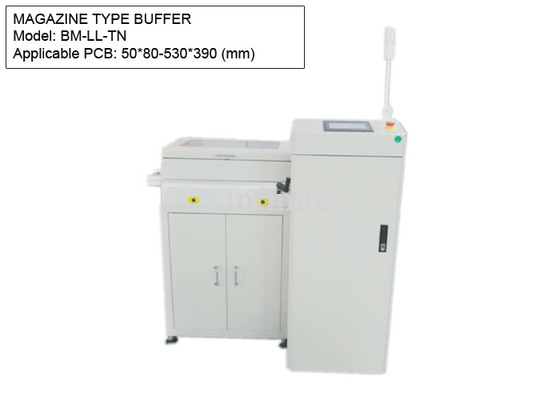

Magazine Type Buffer for LL-Size PCBs - 50mm * 80mm to 530mm * 390mm PCB | INFITEK Board Handling Equipment
The INFITEK BM-LL-TN Magazine Type Buffer is used to collect NG PCBs or memory boards and is used with PCB magazines. This unit stacks PCBs into a magazine rack by variable operation modes - FIFO, LIFO, upper board, lower board, NG board cache, and pass-through modes can be used with this Board Handling Equipment. BM-LL-TN is the model designed for LL Size PCBs. It can be used on PCBs with sizes from 50mm * 80mm to 530mm * 390mm.
Machine Name: Magazine Type Buffer
Model: BM-LL-TN
PCB Size: 50*80-530*390 (mm)
PCB Magazine Size: 535*460*563 (mm)
Machine Dimensions: 1550*1550*1250 (mm)
Est. Machine Weight: Approx. 280 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is used for receiving NG board or memory board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Indexing pitch | 10.20.30.40mm or can be specified |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Air pressure | 4-6bar,15ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | left to right or right to left |
