Product Details:
|
| Features: | Durable Quality And Long Service Life Guaranteed | Application: | Magazine Type Buffer Machine For SMT Production Line |
|---|---|---|---|
| Description: | Magazine Type Buffer For XL-size PCB | Applicable PCB Size: | 50*80-530*460 Mm |
| Model: | BM-XL-TN | Brand: | INFITEK By Infinite Automation |
| Warranty: | One Year | Reliability: | For Industrial Use |
| Packaging: | Wooden Box | ||
| High Light: | PCB Buffer Conveyor 50*80mm,PCB Buffer Conveyor FIFO,Touch Screen Magazine Buffer |
||

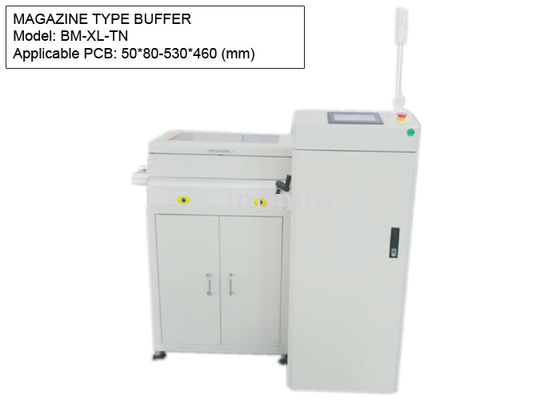

Magazine Type Buffer for XL-Size PCBs - 50mm * 80mm to 530mm * 460mm PCB | INFITEK Board Handling Equipment
INFITEK BM-XL-TN Magazine Type Buffer is a PCB buffer machine used in SMT Production Line. The main function of this Magazine PCB Buffer is to collect NG PCBs or memory boards in the PCB magazine. The INFITEK Magazine Type PCB Buffer Machine can be used in variable operation modes. BM-XL-TN is the model designed for XL-size PCBs with sizes ranging from 50*80-530*460mm.
Machine Name: Magazine Type Buffer
Model: BM-XL-TN
PCB Size: 50*80-530*460 (mm)
PCB Magazine Size: 535*530*563 (mm)
Machine Dimensions: 1550*1780*1250 (mm)
Est. Machine Weight: Approx. 300 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is used for receiving NG board or memory board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Indexing pitch | 10.20.30.40mm or can be specified |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Air pressure | 4-6bar,15ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | left to right or right to left |
