Product Details:
|
| Features: | FIFO, LIFO, Pass-through Operation Modes Available | Application: | PCB Buffer Conveyor Located Between SMT Machines. |
|---|---|---|---|
| Description: | Multifunctional Vertical Buffer For XL Type PCBs | Brand: | INFITEK |
| Model: | BD-XL-TN | Warranty: | 1 Year |
| Reliability: | Industrial Grade | Packaging: | Wooden Box |
| High Light: | SMT Vertical Buffer,LIFO Vertical Buffer |
||
SMT Multifunctional Vertical Type Buffer for 50*50-530*460mm PCBs | INFITEK Board Handling Equipment
The BD-XL-TN model Multifunctional Vertical Buffer Conveyor is designed by INFITEK whose main function is to serve as PCB buffer equipment in the SMT Production Line. One of the important benefits of using a PCB Buffer Machine in an SMT Production Line is that another machine can continue to operate while its subsequent process is currently delayed or becomes a bottleneck in the production line. The board handling equipment model BD-XL-TN is the model designed for use with XL-size PCBs. It has the capacity to load PCBs with sizes ranging from 50*50mm to 530*460mm. It can also be used in different operation modes such as FIFO, LIFO, and Pass-through mode. This INFITEK board handling equipment is easy to operate, designed with high quality, has reliable durability, and ensures a high level of safety protection for users and their working environment.

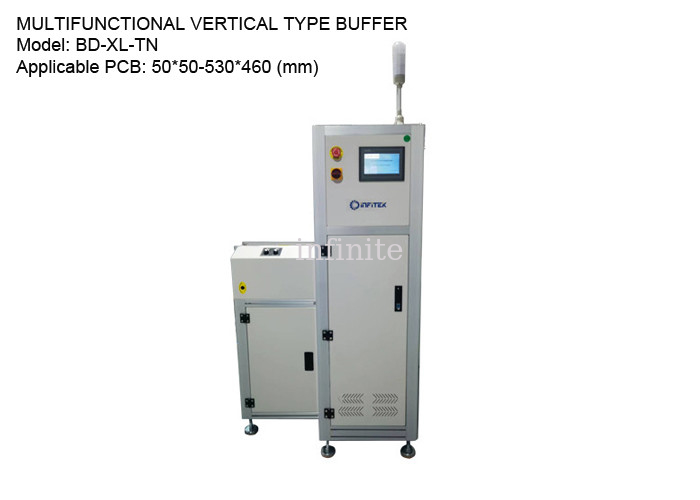

MULTIFUNCTIONAL VERTICAL TYPE BUFFER
Model: BD-XL-TN
Applicable PCB Sizes: 50*50-530*460 (mm)
Machine Dimensions: 1200*900*1640 (mm)
Machine Weight: 240 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used as a buffer between SMT machine |
| Cycle time | Approx.10 seconds |
| Maximum PCBs magazine | 25pcs or specify |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
