Product Details:
|
| Features: | Durability And Long Service Life | Application: | PCB Vacuum Type Loader For SMT Production Line |
|---|---|---|---|
| Description: | PCB Vacuum Loader | Applicable PCB Size: | 50*50-450*330 Mm |
| Model: | LV-330W-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade Design |
| Packaging: | Wooden Crate | ||
| High Light: | 110V/220V SMT Magazine Loader,SMT Magazine Loader 300VA,PCB Loader SMEMA |
||

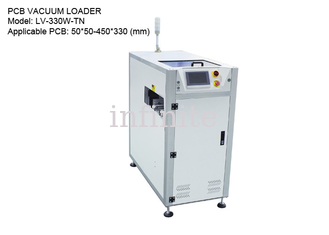

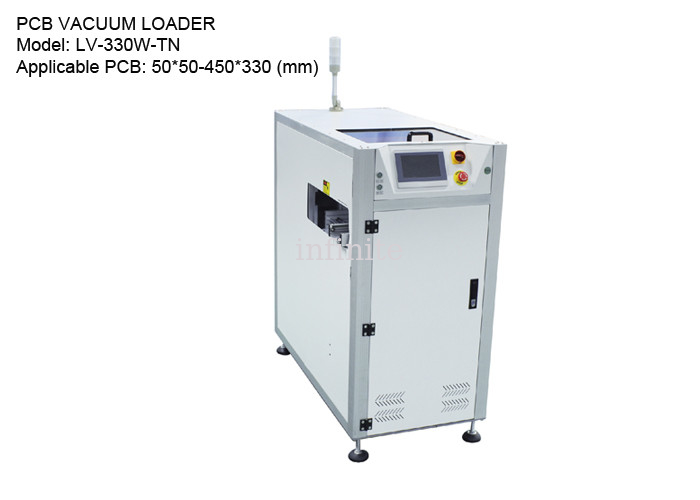

PCB Vacuum Loader for SMT Production Line - 50*50-450*330mm PCB Loader | INFITEK Board Handling Equipment
INFITEK LV-330W-TN Vacuum Loader is an SMT board handling equipment used in the first process in the SMT production line. This PCB conveyor system loads the bare board PCBs to the Solder Paste Printing Machine or Laser Marking Machine or whichever next process requires the bare board PCB. Vacuum Type PCB Loader LV-330W-TN model is designed for PCBs with sizes from 50*50-450*330mm. The INFITEK INFITEK LV-330W-TN Vacuum Loader is easy to operate, has safety features, and is designed to provide accurate PCB suction and loading.
Machine Name: PCB VACUUM LOADER
Model: LV-330W-TN
Applicable PCB Size: 50*50-450*330 (mm)
Machine Dimensions: 600*1002*1300 (mm)
Est. Machine Weight: Approx. 130 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for automatic loading operation into the transceiver board |
| Cycle time | Approx. 12seconds or specify |
| Power supply | AC1P110V/220V |
| Power | 150V max |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
