Aluminum Alloy Automatic PCB Loader 2 in 1 50*80 - 445*330mm

SMT Automatic Vacuum and Magazine PCB Loader - 2in1 PCB Loader, 50*80-445*330mm PCB | INFITEK Board Handling Equipment

INFITEK VL-L-TN Automatic Vacuum and Magazine PCB Loader is a 2in1 PCB loader used in SMT Production Line. This board handling equipment is suitable for SMT production lines that use 2 sided PCBs and use the same production line for top and bottom side processes. The INFITEK VL-L-TN Automatic Vacuum and Magazine PCB loading machine can be used as a PCB Vacuum Loader and Magazine Loader. This dual-purpose SMT board handling equipment is designed for use with the smallest to L-type PCB sizes ranging from 50*80mm to 445*330mm.

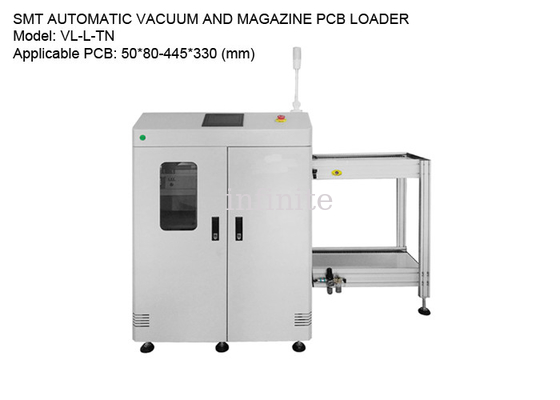

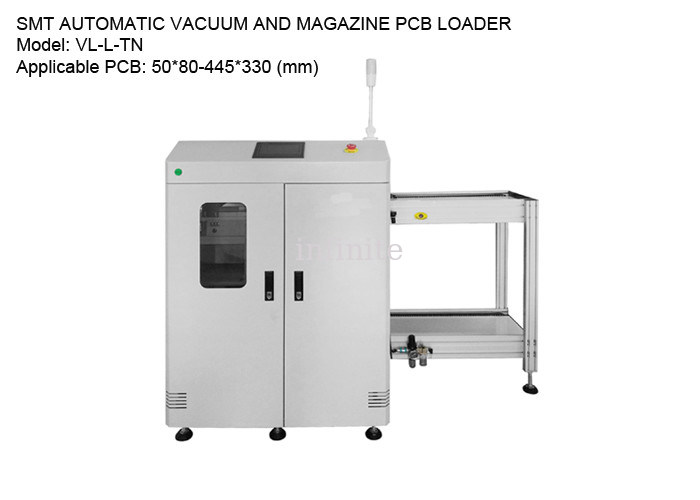

SMT AUTOMATIC VACUUM AND MAGAZINE PCB LOADER

Model: VL-L-TN

Applicable PCB sizes: 50*80-445*330 (mm)

PCB Magazine size: 460*400*563 (mm)

Machine Dimensions: 2220*945*1250 (mm)

Machine Weight: Approx. 240 kg.

Features:

• Special aluminum alloy institutions, more clearly understand the state of MAGAZINE operation
• The stable integral casting lifting platform structure design has improved the stability of the equipment
• Multifunctional electrical circuit and program design, stable performance, ensure smooth of the feeding plate PCB
• The upper part of the bin has 4 kinds of PITCH selection, which can set the step distance of the feeding plate PCB
• The LED tricolor working indicator is controlled by a 7-inch color human-machine interface
• A universal positioning mechanism is adopted for the suction nozzle positioning, and the absorption bits can be adjusted according to the characteristics of the PCB board
• The board part of the PCB on the suction plate has the function of lifting and un-lifting.
• The material box is transmitted by the plastic strip of the flat plate
• Adjustable push plate speed control
• Three-point positioning, and upper and lower pneumatic clamping, ensure the location of the box is accurate
• The push plate protection system ensures that the PCB board will not be damaged and the process loss will be reduced
• The standard SMEMA communication interface can be connected with other automation devices

Operation Diagram
