Product Details:
|
| Features: | Durability Tested And Guaranteed Long Service Life | Application: | SMT Dual-rail PCB Unloader |
|---|---|---|---|
| Description: | Dual Rail Unloader For L-size PCB | Model: | BH-L-TN |
| PCB Size: | 50*80-445*330mm | Brand: | INFITEK |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box |
| Warranty: | 1 Year Warranty | ||
| Highlight: | Dual Rail PCB Loader Unloader,PCB Loader Unloader 445*330mm |
||
SMT Dual Rail Unloader for L-size PCBs, 50*80mm to 445*330mm PCB size | INFITEK Board Handling Equipment
INFITEK BH-L-TN Dual Rail Unloader is a Magazine Type PCB Unloader designed for dual rail SMT Production Line. This board handling equipment is used for the loading operation of double-sided boards and transceiver boards. This INFITEK BH-L-TN Dual Rail Unloading Machine model is designed for L-size PCBs. PCBs with sizes from 50*80mm to 445*330mm can be used in this PCB board handling machine. The Infitek Dual Rail Unloader has a strong and stable structure and is designed to be a reliable SMT board handling equipment. The board handling equipment manufactured by INFITEK is of high quality, guaranteed durability, and has features that provide a high safety level.

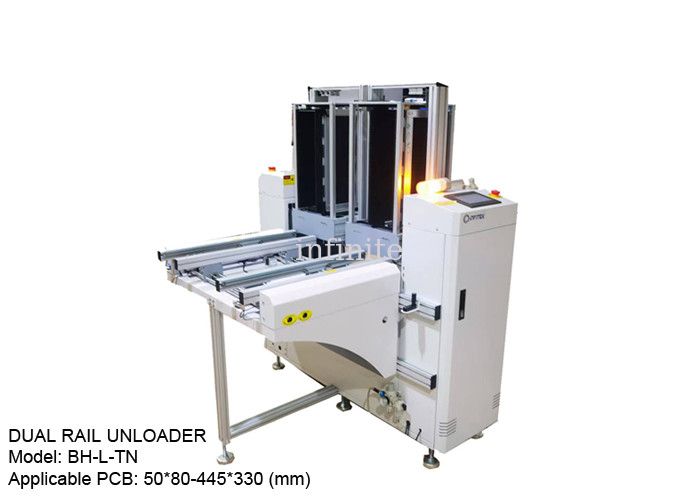

DUAL RAIL UNLOADER
Model: BH-L-TN
Applicable PCB Sizes: 50*80-445*330 (mm)
PCB Magazine Size: 460*400*563 (mm)
Machine Dimensions: 2065*1690*1250 (mm)
Machine Weight: Approx. 350 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the loading operation of double-Sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram
