| Features: | Durable And Guaranteed Long Service Life | Application: | Dual-rail PCB Unloader For Dual Rail SMT Production Line |
|---|---|---|---|
| Description: | Dual Rail Unloader For LL-size PCB | Model: | BH-LL-TN |
| PCB Size: | 50*80-530*390mm | Brand: | INFITEK |
| Reliability: | Industrial Use | Packaging: | Wooden Box/Crate |
| Warranty: | 1-Year Warranty | ||
| Highlight: | 900mm Board Handling Equipment,Board Handling Equipment 530*390mm |
||
SMT Dual Rail Unloader for LL-size PCBs, 50*80mm to 530*390mm PCB size | INFITEK Board Handling Equipment
INFITEK BH-LL-TN Dual Rail Unloader is a PCB Magazine Type Unloader Machine with a design suitable for Dual Rail SMT Production Line. This board handling equipment is designed to be an unloading machine of PCBs after Reflow or Post Reflow AOI Process. The INFITEK BH-LL-TN model Dual Rail Magazine Type Unloader has a strong structure and features that will ease the production process and provide security to the safety of its users. This board handling equipment is user-friendly and uses MCGS Touch Screen and Panasonic PLC Control and OMRON Relay.

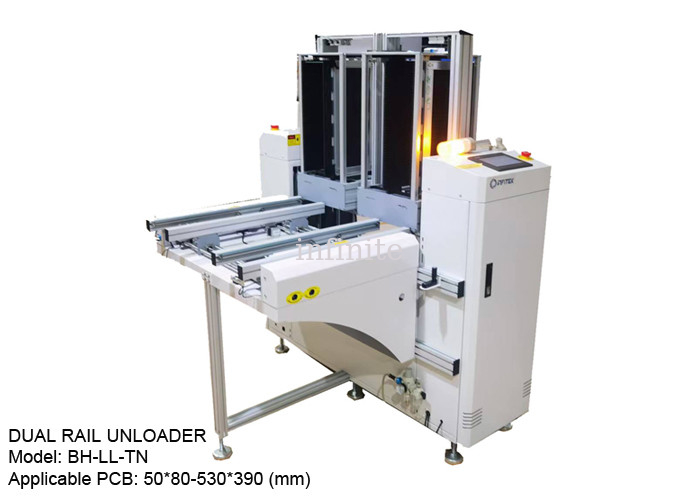

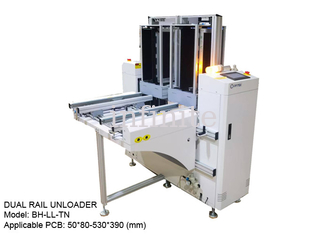

DUAL RAIL UNLOADER
Model: BH-LL-TN
Applicable PCB Sizes: 50*80-530*390 (mm)
PCB Magazine Size: 535*460*563 (mm)
Machine Dimensions: 2330*1810*1250 (mm)
Machine Weight: Approx. 380 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the loading operation of double-Sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram
