Product Details:
|
| Features: | Easy To Operate, Durable, And With Long Life Span | Application: | SMT Magazine Type Unloader For XL-size PCBs |
|---|---|---|---|
| Description: | Magazine Type PCB Loader Unloader XL-Type | Brand: | INFITEK |
| Model: | UL-XL-TN | PCB Size: | 50*80-530*460 Mm |
| Warranty: | 1-Year Warranty | Reliability: | Industrial Use Design |
| Packaging: | Wooden Crate/box | ||
| Highlight: | SMEMA PCB Magazine Unloader,PCB Magazine Unloader 530*460mm,PCB Unloading Machine |
||
Automatic Magazine Type PCB Unloader for XL-size PCBs - 50*80-530*460mm PCB Sizes | INFITEK Board Handling Equipment

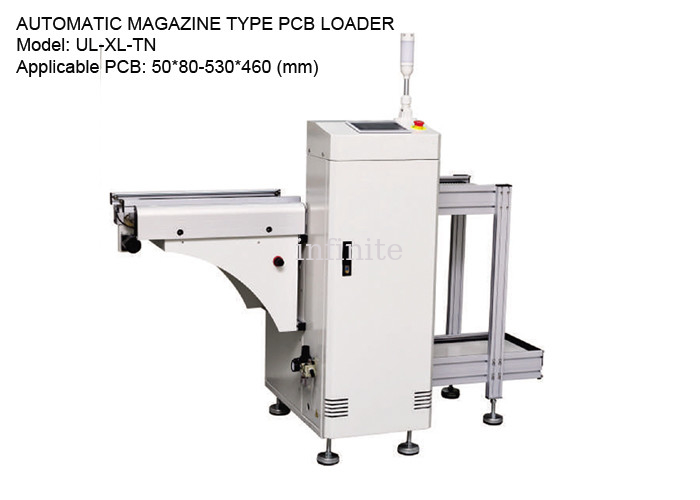

The INFITEK UL-XL-TN PCB Magazine Unloader is a board handling equipment that is used for unloading PCBs using a magazine rack. It is used in the SMT Production Line as the last stage and stacks the SMT-mounted components PCBs for the next process . The SMT conveyor systems manufactured by INFITEK have been thoroughly studied in design and used branded-imported parts to ensure the level of quality, durability, efficiency, and safety. The INFITEK UL-XL-TN Magazine Type PCB Magazine Unloader is designed for use with XL-size PCBs and has an adjustable PCB rail that can accommodate PCBs with sizes from 50*80mm to 530*460mm max size.
SMT PCB Magazine Unloader
Model: UL-XL-TN
Applicable PCB Sizes: 50*80-530*460 (mm)
PCB Magazine Size: 535*530*563 (mm)
Machine Dimensions: 2260*980*1250 (mm)
Machine Weight: 320 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for unloading and of PCBs using a PCB Magazine |
| No. of magazine | Loader: upper 1, lower 2 / Unloader: upper 1, ,lower 1 |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max300VA |
| Air pressure | 4-6bar,10ltr/min max |
|
Transport height |
900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
