Product Details:
|
| Features: | Easy To Operate And Durable | Application: | SMT Magazine Type Loader |
|---|---|---|---|
| Description: | Magazine Type PCB Loader Loader | Brand: | INFITEK |
| Model: | LD-M-TN | PCB Size: | 50*80-330*250 Mm |
| Warranty: | 1 Year Warranty Period | Reliability: | Industrial Use |
| Packaging: | Wooden Box | ||
| High Light: | 330*250mm SMT Magazine Loader,SMT Magazine Loader M-Size,PCB Loader Machine |
||

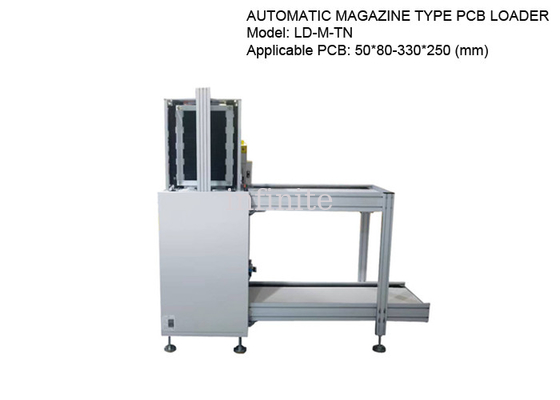

Automatic Magazine Type PCB Loader for M-size PCBs - 50*80-330*250mm PCB Sizes | INFITEK Board Handling Equipment
INFITEK LD-M-TN Automatic Loader is a magazine-type PCB loading machine used in SMT Production Line. Automatic Magazine Loader manufactured by INFITEK is made of high quality, branded parts, and machine structure with stable design to ensure reliability in operation. The INFITEK Magazine Loader is easy to operate. INFITEK LD-M-TN Automatic Loader is the model designed for M-size PCB. Its rail can be adjusted from 50*80mm to 330*250mm.
SMT PCB Magazine Loader
Model: LD-M-TN
Applicable PCB Sizes: 50*80-330*250 (mm)
PCB Magazine Size: 355*320*563 (mm)
Machine Dimensions: 1330*765*1250 (mm)
Machine Weight: 140 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for loading and of PCBs using a PCB Magazine |
| No. of magazine | Loader: upper 1, lower 2 / Unloader: upper 1, ,lower 1 |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
