Product Details:
|
| Features: | Easy To Operate And Durable | Application: | SMT Magazine Type Loader For L-size PCBs |
|---|---|---|---|
| Description: | Magazine Type PCB Loader Loader | Brand: | INFITEK |
| Model: | LD-L-TN | PCB Size: | 50*80-445*330 Mm |
| Warranty: | 1 Year | Reliability: | For Industrial Use |
| Packaging: | Wooden Box/Crate | ||
| High Light: | SMT Magazine Loader 445*330mm,SMT Magazine Loader L-Size,SMT Automatic Pcb Loader |
||

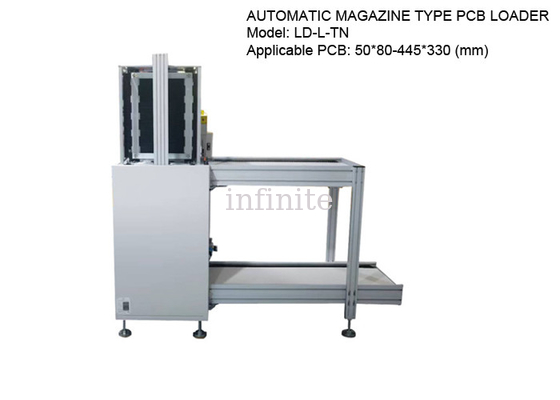

Automatic Magazine Type PCB Loader for L-size PCBs - 50*80-445*330mm PCB Sizes | INFITEK Board Handling Equipment
INFITEK LD-L-TN Automatic Loader is an SMT board handling equipment used to load PCBs using PCB magazine to its next process. The magazine-type PCB loader is suitable for double-sided PCBs. INFITEK LD-L-TN model Automatic Magazine Type PCB Loader is designed for L-size PCBs and has an adjustable rail that can accommodate PCBs with sizes from 50*80mm to 445*330mm max size. INFITEK board handling equipment is guaranteed to be of high quality and durability that will provide a longer life span. It is also used by branded parts and independently developed software.
SMT PCB Magazine Loader
Model: LD-L-TN
Applicable PCB Sizes: 50*80-445*330 (mm)
PCB Magazine Size: 460*400*563 (mm)
Machine Dimensions: 1650*845*1250 (mm)
Machine Weight: 200 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for loading and of PCBs using a PCB Magazine |
| No. of magazine | Loader: upper 1, lower 2 / Unloader: upper 1, ,lower 1 |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
