| Features: | Easy To Operate, Durable, Long Life Span | Application: | SMT Magazine Type Loader For L-size PCBs |
|---|---|---|---|
| Description: | Magazine Type PCB Loader Loader | Brand: | INFITEK |
| Model: | LD-LL-TN | PCB Size: | 50*80-530*390 Mm |
| Warranty: | 1-Year | Reliability: | Industrial Use |
| Packaging: | Wooden Box Package | ||
| High Light: | LL SMT Magazine Loader,SMT Magazine Loader 50*80,Automatic PCB Loader |
||

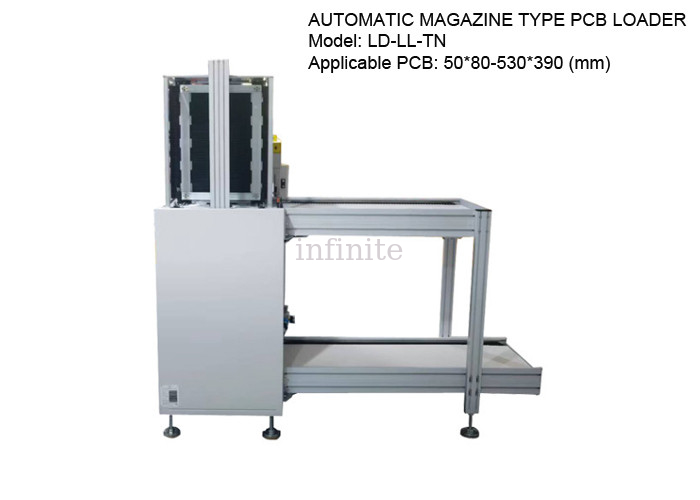

Automatic Magazine Type PCB Loader for LL-size PCBs - 50*80-530*390mm PCB Sizes | INFITEK Board Handling Equipment
The INFITEK LD-LL-TN Automatic Loader is a model designed for LL-size PCBs. It is a board handling equipment used for transferring PCBs that are stacked in the PCB magazine to the next process. Magazine Type Loader is suitable for SMT Production Lines that produce double-sided or double-sided mounted PCBs. Model LD-LL-TN is the magazine loader designed by INFITEK for PCBs with dimensions from 50*80mm to 530*390mm.
SMT PCB Magazine Loader
Model: LD-LL-TN
Applicable PCB Sizes: 50*80-530*390 (mm)
PCB Magazine Size: 535*460*563 (mm)
Machine Dimensions: 1800*909*1250 (mm)
Machine Weight: 240 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for loading and of PCBs using a PCB Magazine |
| No. of magazine | Loader: upper 1, lower 2 / Unloader: upper 1, ,lower 1 |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
