Product Details:
|
| Application: | Single Lane NG And OK PCB Automatic Separation After SPI/AOI | Description: | NG Buffer Conveyor (without Extension Conveyor) L Size PCB |
|---|---|---|---|
| Model: | BN-L-SN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Durable / Industrial Use Design |
| Packaging: | Wooden Box | ||
| High Light: | L PCB Buffer Conveyor,NG PCB Buffer Conveyor,PCB Reject Conveyor |
||

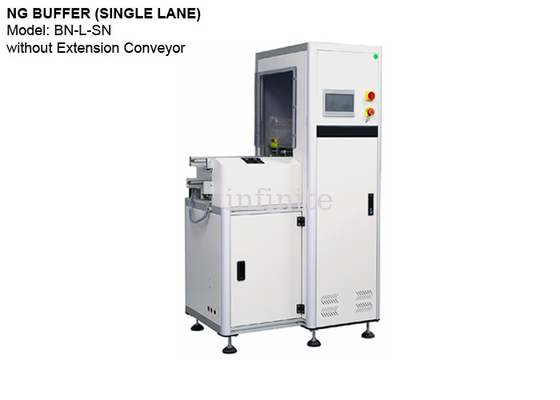

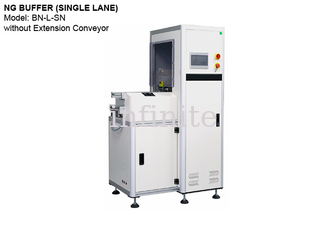

NG Buffer without Extension Conveyor for L Size PCB - NG/OK PCB Separation after AOI/SPI | INFITEK Board Handling
INFITEK BN-L-SN NG Buffer is a board handling equipment used in SMT Production Line. This SMT buffer conveyor system is designed for a single-lane SMT production line. INFITEK BN-L-SN is designed for L-size PCBs. IINFITEK is a brand made by Infinite Automation - a reliable China Manufacturer-Supplier of products and equipment focused on factory automation solution products.
Machine Name: NG Buffer Conveyor (Single Lane)
Model: BN-L-SN
PCB Size: 50*50-460*350 (mm)
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
