Product Details:
|
| Application: | Dual Lane NG Buffer Conveyor For SMT Production Line | Description: | Dual Lane NG Buffer Conveyor (without Extension Conveyor) L Size PCB |
|---|---|---|---|
| Model: | BN-XL-DSN | Brand: | INFITEK |
| Warranty: | 1-Year | Reliability: | Durable - Long Life Span |
| Packaging: | Wooden Crate/box | ||
| High Light: | Dual Lane PCB Buffer Conveyor,PCB Buffer Conveyor SMEMA |
||

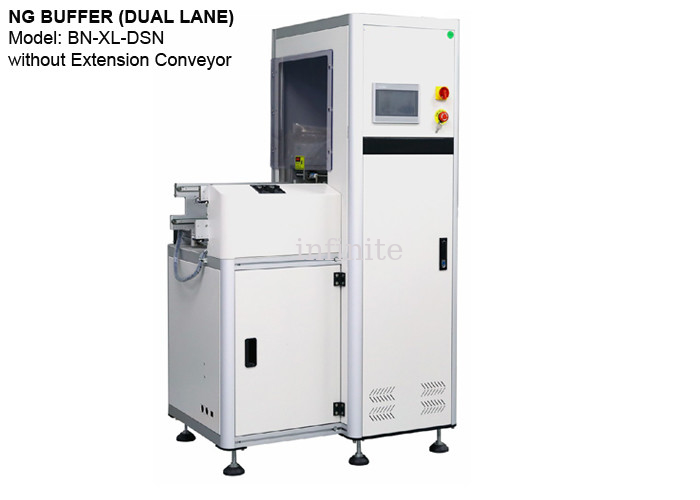

Dual Lane NG Buffer without extension conveyor for XL-size PCB | INFITEK Board Handling Equipment
The INFITEK BN-XL-DSN Dual Lane NG Buffer is an SMT board handling equipment that caches NG PCBs coming from SPI or AOI inspection machines while bypassing good PCBs to go straight to its next process. The INFITEK Dual Lane NG Buffer has different operation modes that can be used in the method of loading and unloading PCBs. It can be set in FIFO, LIFO, and Pass-through modes.
Machine Name: NG Buffer Conveyor (Dual Lane)
Model: BN-XL-DSN
For L-size PCB
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
