| Features: | Durability And Long Service Life | Application: | NG And OK PCB Automatic Separation In SMT Production Line |
|---|---|---|---|
| Description: | Horizontally NG/OK Machine (M Size PCB) | Applicable PCB Size: | 50*80-330*250 Mm |
| Model: | NL-M-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade Design |
| Packaging: | Wooden Crate | ||
| High Light: | NG Board Handling Equipment,OK Board Handling Equipment |
||

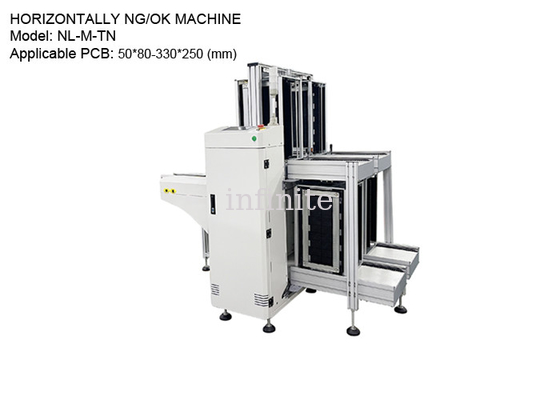

Horizontally NG/OK Machine - NG and OK PCB Separation Conveyor for M Size PCB | INFITEK Board Handling Equipment
INFITEK Horizontally NG/OK Machine is a type of PCB unloader machine with the ability to separate OK and NG PCBs after the AOI machine process. This board handling equipment has a dual rail. The pass or good PCB will go directly to the next process, while the NG PCBs will be transferred on a conveyor to a PCB magazine to be collected and inspected again or go through the repair process. NL-M-TN is the model designed for M-size PCB. INFITEK NL-M-TN is suitable for PCBs with sizes from 50*80mm to 330*250mm.
Machine Name: Horizontally NG/OK Machine
Model: NL-M-TN
PCB Size: 50*80-330*250 mm)
PCB Magazine Size: 355*320*563 (mm)
Machine Dimensions: 1800*1435*1250 mm)
Est. Machine Weight: Approx. 310 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
