| Features: | Durability And Long Service Life Guaranteed | Application: | NG And OK PCB Automatic Separation In SMT Production Line |
|---|---|---|---|
| Description: | Horizontally NG/OK Machine (L Size PCB) | Applicable PCB Size: | 50*80-445*330 Mm |
| Model: | NL-L-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Crate/box | ||
| High Light: | Horizontally PCB Conveyor System,PCB Conveyor System L Size |
||

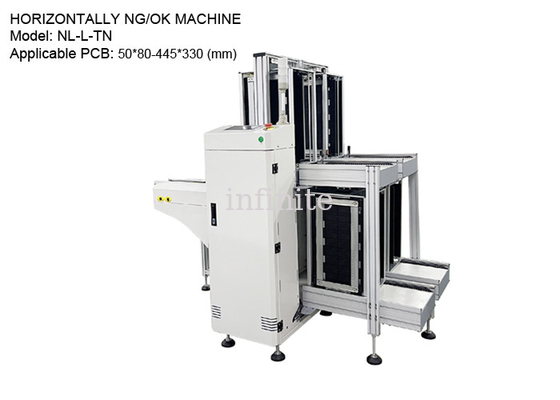

Horizontally NG/OK Machine - NG and OK PCB Separation Conveyor for L Size PCB | INFITEK Board Handling Equipment
The INFITEK Horizontally NG/OK Machine is an SMT board handling equipment used to automatically separate OK and NG PCBs after the AOI process. It automatically follows the result and command of the AOI machine. The NG PCBs automatically go to the NG section or Magazine to be retested or undergo a thorough visual inspection or repair process. The NL-L-TN model is designed for L-size PCBs or PCBs with sizes from 50*80mm to 445*330mm.
Machine Name: Horizontally NG/OK Machine
Model: NL-L-TN
PCB Size: 50*80-445*330 mm)
PCB Magazine Size: 460*400*563 (mm)
Machine Dimensions: 2065*1690*1250mm)
Est. Machine Weight: Approx. 340 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
