Product Details:
|
| Features: | Durable And Long Service Life | Application: | NG And OK PCB Automatic Separation In SMT Production Line |
|---|---|---|---|
| Description: | Horizontally NG/OK Machine (LL Size PCB) | Applicable PCB Size: | 50*80-530*390 Mm |
| Model: | NL-LL-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Crate/box | ||
| High Light: | LL PCB Unloading Machine,Separation PCB Unloading Machine |
||

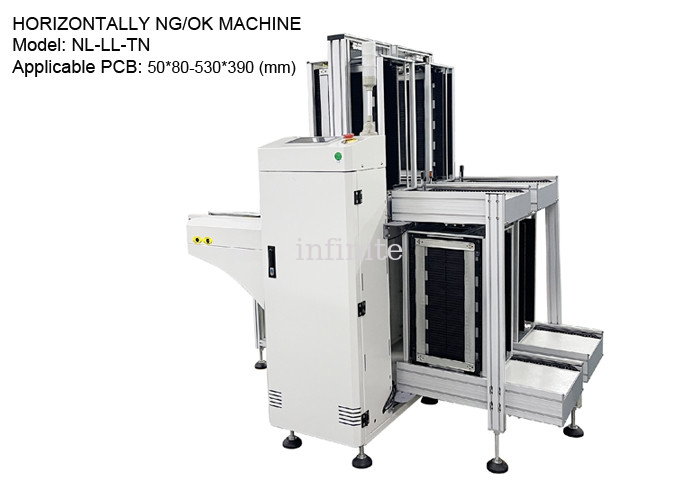

Horizontally NG/OK Machine - NG and OK PCB Separation Conveyor for LL Size PCB | INFITEK Board Handling Equipment
The INFITEK NL-LL-TN Horizontally NG/OK Machine is a dual rail conveyor system used for the automatic separation of good PBs and NG PCBs after the AOI process. This board handling equipment is an effective machine to speed the process of separating PCBs that require retesting or going through a more thorough inspection or repair process. The INFITEK NL-LL-TN model Horizontally NG/OK Machine is designed for LL size PCBs. This model is capable of loading PCBs with dimensions from 50*80mm to 530*390mm.
Machine Name: Horizontally NG/OK Machine
Model: NL-LL-TN
PCB Size: 50*80-530*390 (mm)
PCB Magazine Size: 535*460*563 (mm)
Machine Dimensions: 2330*1810*1250 (mm)
Est. Machine Weight: Approx. 370 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
