Product Details:
|
| Features: | Durable And Long Service Life | Application: | NG And OK PCB Automatic Separation In SMT Production Line |
|---|---|---|---|
| Description: | Horizontally NG/OK Machine (LL Size PCB) | Applicable PCB Size: | 50*80-530*390 Mm |
| Model: | NL-LL-TN | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Crate/box | ||
| High Light: | touch screen SMT Handling Equipment,XL SMT Handling Equipment,NG buffer PLC Control |
||
Horizontally NG/OK Machine - NG and OK PCB Separation Conveyor for XL Size PCB | INFITEK Board Handling Equipment

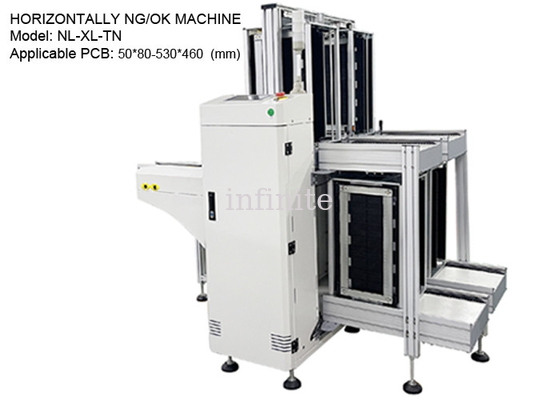

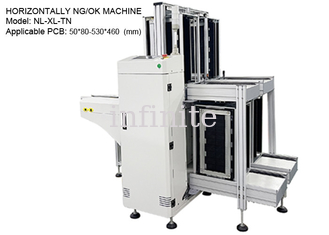

INFITEK NL-XL-TN Horizontally NG/OK Machine is a board handling equipment used in SMT production line. The function of the Horizontally NG/OK Machine is the automatic separation of good PCBs and NG PCBs after the AOI process. The AOI machine automatically feeds the inspection result to the NG/OK Machine and this SMT conveyor system automatically separates the NG PCBs and stores them in a PCB magazine. NL-XL-TN is the Horizontally NG/OK Machine model designed for XL size PCBs. PCBs with sizes from 50*80mm to 530*460mm can be used here. INFITEK board handling equipment has a variety of designs that can be used in SMT, DIP, and PCBA PCB transfer. Board handling equipment manufactured by INFITEK uses original parts and independently developed software and designs.
Machine Name: Horizontally NG/OK Machine
Model: NL-XL-TN
PCB Size: 50*80-530*460 (mm)
PCB Magazine Size: 535*530*563 (mm)
Machine Dimensions: 2330*1950*1250 (mm)
Est. Machine Weight: Approx. 400 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
