Product Details:
|
| Features: | Durable And Guaranteed Long Service Life | Application: | Magazine Type Unloader For Dual Rail SMT Production Line |
|---|---|---|---|
| Description: | Dual Rail Unloader For XL-size PCB | Model: | BH-XL-TN |
| PCB Size: | 50*80-530*460mm | Brand: | INFITEK By Infinite Automation |
| Reliability: | Industrial Grade | Packaging: | Wooden Box Package |
| Warranty: | One Year Warranty | ||
| High Light: | Dual Rail PCB Magazine Unloader,PCB Magazine Unloader 300VA,PCB Loader And Unloader |
||
SMT Dual Rail Unloader for XL-size PCBs, 50*80mm to 530*460mm PCB size | INFITEK Board Handling Equipment
INFITEK BH-XL-TN Dual Rail Unloader is a Magazine Type PCB unloading conveyor designed for Dual Rail SMT Production Line. This Magazine Type Unloader model is available for XL-size PCBs and has an adjustable rail width from 50*80mm up to 530*460mm max size. The Infitek Dual Rail Magazine Unloader has a user-friendly touch screen operation. Board handling equipment manufactured by INFITEK is guaranteed to be durable, high quality, and reliable with long service life.

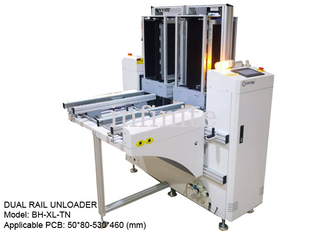

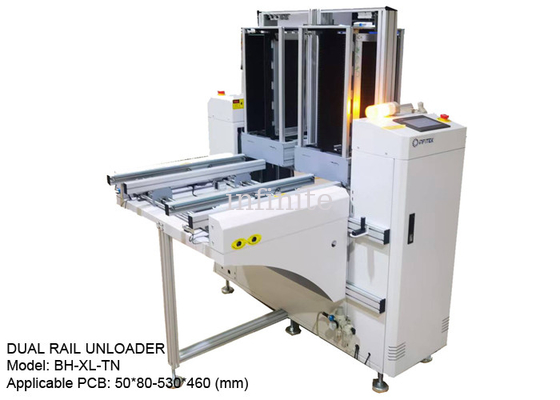

DUAL RAIL UNLOADER for XL-size PCBs
Model No.: BH-XL-TN
Applicable PCBs: 50*80-530*460 (mm)
PCB Rack Size: 535*530*563 (mm)
Equipment Dimensions: 2330*1950*1250 (mm)
Weight: Approx. 410 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the unloading operations of transceiver boards and double-sided boards. |
| No. of magazine |
Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram
