Product Details:
|
| Features: | Durable And Guaranteed Long Service Life | Application: | L Type Unloader For SMT Production Line |
|---|---|---|---|
| Description: | L Type UnLoader For M-size PCB | Model: | ULF-M-TN |
| PCB Size: | 50*80-330*250mm | Brand: | INFITEK |
| Reliability: | Industrial Grade | Packaging: | Wooden Box Package |
| Warranty: | One Year Warranty | ||
| High Light: | 6bar PCB Magazine Unloader,PCB Magazine Unloader 30ltr/Min |
||
L Type UnLoader designed for M Size PCB, 50*80-330*250mm PCBs | INFITEK Board Handling Equipment
The INFITEK ULF-M-TN L Type Unloader is a smaller version of the Magazine Type PCB Unloader used in the SMT Production Line. This PCB Unloading Machine is designed to suit the needs of SMT production lines with limited space. The INFITEK ULF-M-TN L Type Unloader is a reliable board handling equipment because it is used with quality parts and ensures durability and safety in operation. This SMT Unloader Conveyor has MCGS Touch Screen and Panasonic PLC Control and OMRON Relay.

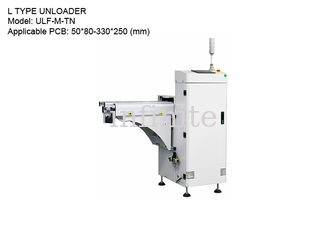

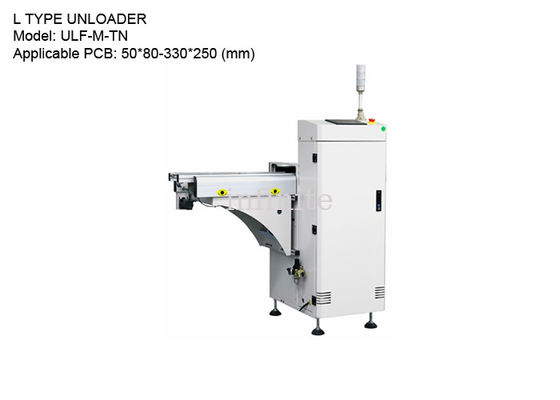

L TYPE UNLOADER
Model No.: ULF-M-TN
Applicable PCBs: 50*80-330*250 (mm)
PCB Rack Size: 355*320*563 (mm)
Equipment Dimensions: 1150*1150*1205 (mm)
Weight: Approx. 160 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper board or lower board of the circuit board on the SMT production line |
| No. of magazine | Upper Conveyor:1 magazine |
| Lower conveyor:1 magazine | |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
