Product Details:
|
| Features: | Durable And Long Service Life Guaranteed | Application: | L Type Unloader For SMT Production Line Use |
|---|---|---|---|
| Description: | L Type UnLoader For L-size PCB | PCB Size: | 50*80-445*330mm |
| Brand: | Infitek | Reliability: | Industrial Grade Design |
| Model: | ULF-L-TN | Packaging: | Wooden Box |
| Warranty: | 1 Year Warranty | ||
| High Light: | L Type PCB Magazine Unloader,PCB Magazine Unloader 6 Seconds,Pick And Place PCB Machine |
||
L Type UnLoader designed for L Size PCB, 50*80-445*330mm PCBs | INFITEK Board Handling Equipment
INFITEK ULF-L-TN L-Type Magazine Unloader is a PCB UnloadingConveyor and Magazine Stacker Machine used in SMT Production Line. The L-Type Unloader has a more compact design than the regular Magazine Type PCB Unloader, it is designed to take up little space and is suitable for SMT production lines with limited space. INFITEK ULF-L-TN L-Type Magazine Unloader is a model designed for L-size PCBs.

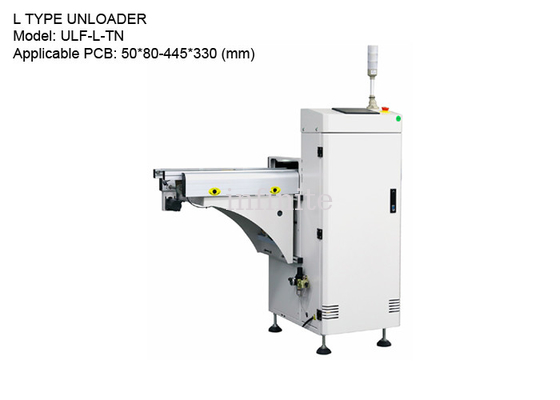

L TYPE UNLOADER
Model No.: ULF-L-TN
Applicable PCBs: 50*80-445*330 (mm)
PCB Rack Size: 460*400*563 (mm)
Equipment Dimensions: 1350*1350*1205 (mm)
Weight: Approx. 220 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper board or lower board of the circuit board on the SMT production line |
| No. of magazine | Upper Conveyor:1 magazine |
| Lower conveyor:1 magazine | |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
