Product Details:
|
| Features: | Durable And Long Service Life Guaranteed | Application: | L Type Magazine Unloader For SMT Production Line |
|---|---|---|---|
| Description: | L Type UnLoader For LL-size PCB | Model: | ULF-LL-TN |
| PCB Size: | 50*80-445*330mm | Brand: | INFITEK By Infinite Automation |
| Reliability: | For Industrial Use | Packaging: | Wooden Box / Crate |
| Warranty: | 1-Year Warranty | ||
| High Light: | AC 110V PCB Magazine Unloader,PCB Magazine Unloader 30s,900mm PCB Production Line |
||
L Type UnLoader designed for LL Size PCB, 50*80-530*390mm PCBs | INFITEK Board Handling Equipment
INFITEK ULF-LL-TN L-Type Unloader is a PCB Unloading Machine used to assemble PCBs after the whole process in an SMT Production Line. The L-Type Magazine Type Unloader is designed with PCB magazines on the side to save space along the length of the production line. This is suitable if the space of a production line is limited. INFITEK ULF-LL-TN L-Type Unloading Machine is a model designed for LL-size PCBs. It has a width adjustment that can accommodate PCBs with sizes from 50*80mm to 530*390mm.

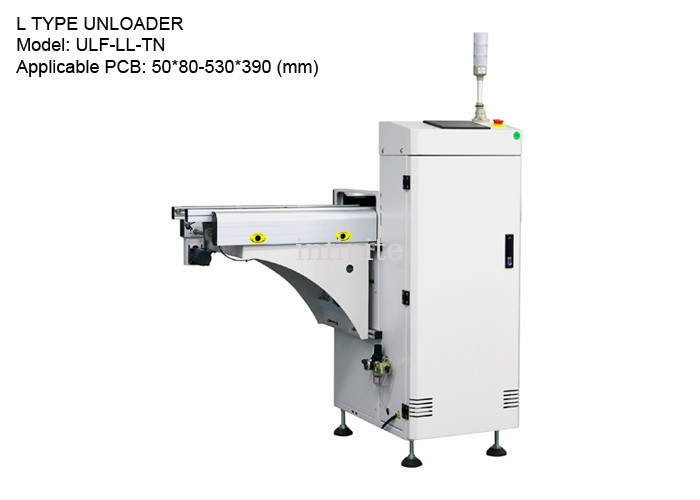

L TYPE UNLOADER
Model No.: ULF-LL-TN
Applicable PCBs: 50*80-530*390 (mm)
PCB Rack Size: 535*460*563 (mm)
Equipment Dimensions: 1550*1550*1205 (mm)
Weight: Approx. 280 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper board or lower board of the circuit board on the SMT production line |
| No. of magazine | Upper Conveyor: 1 magazine |
| Lower conveyor:1 magazine | |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
