| Features: | Durability Tested And Long Service Life Guaranteed | Application: | L Type Magazine Unloader For SMT Production Line Use |
|---|---|---|---|
| Description: | L Type UnLoader For XL-size PCB | Model: | ULF-XL-TN |
| PCB Size: | 50*80-530*460mm | Brand: | INFITEK |
| Reliability: | Industrial Grade | Packaging: | Wooden Box Package |
| Warranty: | 1-Year Warranty | ||
| High Light: | 40mm Pitch PCB Magazine Unloader,PCB Magazine Unloader PLC |
||
L Type UnLoader designed for XL Size PCB, 50*80-530*460mm PCBs | INFITEK Board Handling Equipment
The ULF-XL-TN model L-Type Unloader is a board handling equipment designed and developed by INFITEK. This Magazine Type Unloader uses imported branded parts and independently developed parts to ensure quality, durability, and accuracy in operation. The INFITEK ULF-XL-TN model L-Type SMT Unloader is the model designed for XL-size PCBs. It has an adjustable rail that can be adjusted to be suitable for use on PCBs with sizes from 50*80mm to 530*460mm.

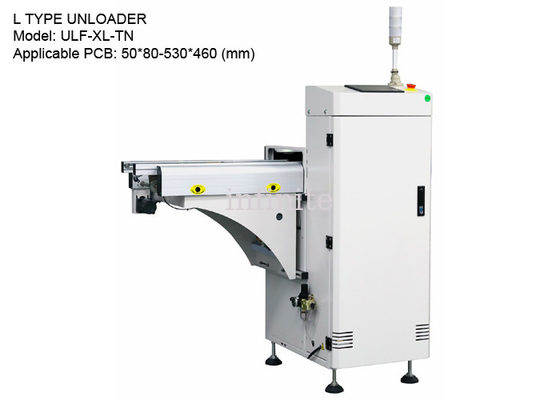

L TYPE UNLOADER
Model No.: ULF-XL-TN
Applicable PCBs: 50*80-530*460 (mm)
PCB Rack Size: 535*530*563 (mm)
Equipment Dimensions: 1550*1780*1205 (mm)
Weight: Approx. 320 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper board or lower board of the circuit board on the SMT production line |
| No. of magazine | Upper Conveyor: 1 magazine |
| Lower conveyor:1 magazine | |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
